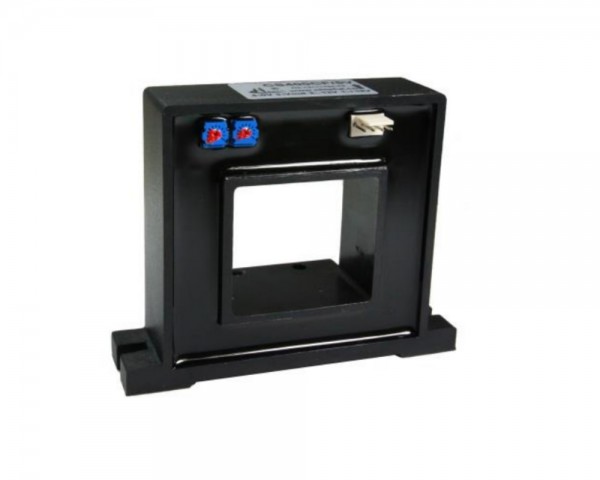

This Hall Effect current sensor is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
|Nominal Input Current:||0-200A, 0-400A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-1500A|
|Power Supply:||±12V ~ ±15V DC|
|Output Signal:||±5V AC/DC|
|Window Size (mm):||42 x 37|
|Operating Temperature:||-25°C ~ +85°C|
|Frequency Bandwith:||DC ~ 20kHz|
