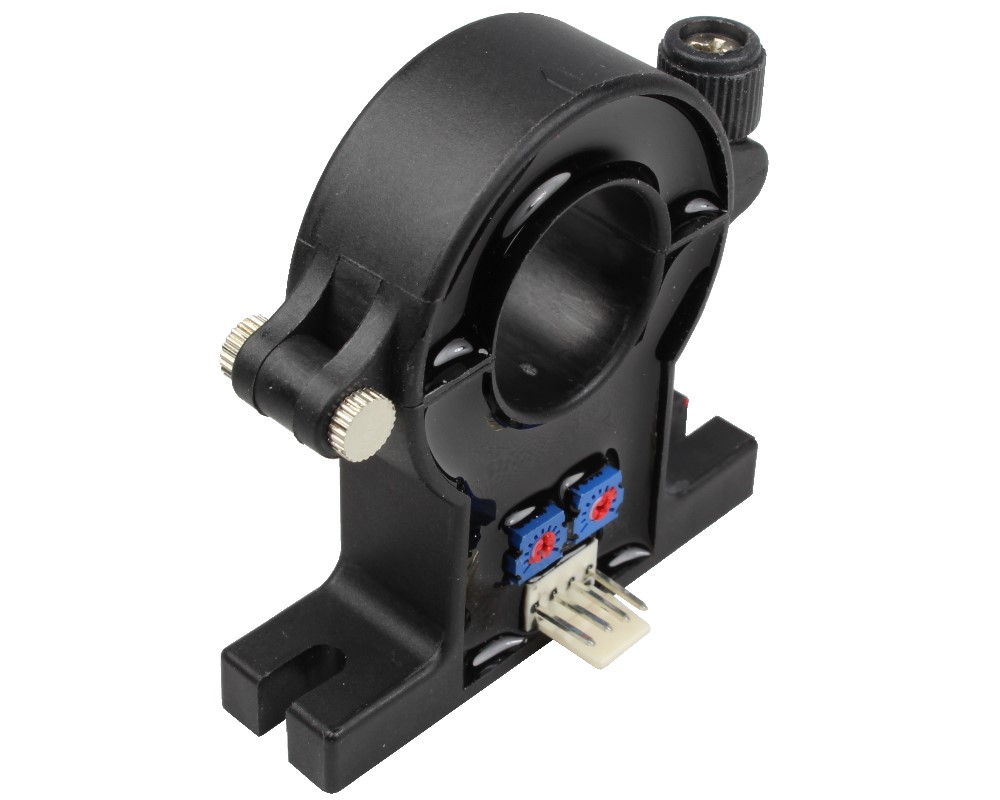

Split Core AC/DC Hall Current Sensor CYHCS-C2S1, Output: 2.5 V DC ± 1.0 V AC/DC, Power Supply: +5 V DC, Window: Ø 21 mm, Connector: Molex
Quantity | Unit price |
---|---|
until 4 | € 27.95 * |
from 5 | € 25.41 * |
from 10 | € 23.11 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks
- Article-Nr: CYHCS-C2S1-30A-M
- Serial-Nr: CYHCS-C2S1
- Request on this Article
- Data Sheet Download
- Data Sheet Download (German)
This Hall Effect current sensor can be used for measurement of DC and AC current, pulsed... more
Split Core AC/DC Hall Current Sensor CYHCS-C2S1, Output: 2.5 V DC ± 1.0 V AC/DC, Power Supply: +5 V DC, Window: Ø 21 mm, Connector: Molex
This Hall Effect current sensor can be used for measurement of DC and AC current, pulsed currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Light in weight
- Less power consumption
- Window structure
- Electrically isolating the output of the transducer from the current carrying conductor
- No insertion loss
- Current overload capability
Applications
- Frequency conversion timing equipment
- Various power supply
- Uninterruptible power supplies (UPS)
- Electric welding machines
- Numerical controlled machine tools
- Electrolyzing and electroplating equipment
- Electric powered locomotive
- Microcomputer monitoring
- Electric power network monitoring
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
Nominal Input Current: | 0-30A, 0-50A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-600A |
Sensor Type: | Open-Loop |
Power Supply: | +5 V DC |
Output Signal: | +2,5 V ± 1 V AC/DC |
Current Type: | AC/DC |
Window Type: | Round |
Window Size (mm): | Ø 21 |
Direction: | bidirectional |
Accuracy: | 1% |
Linearity: | 1% |
Operating Temperature: | -25°C ~ +85°C |
Frequency Bandwith: | 0Hz ~ 20kHz |
