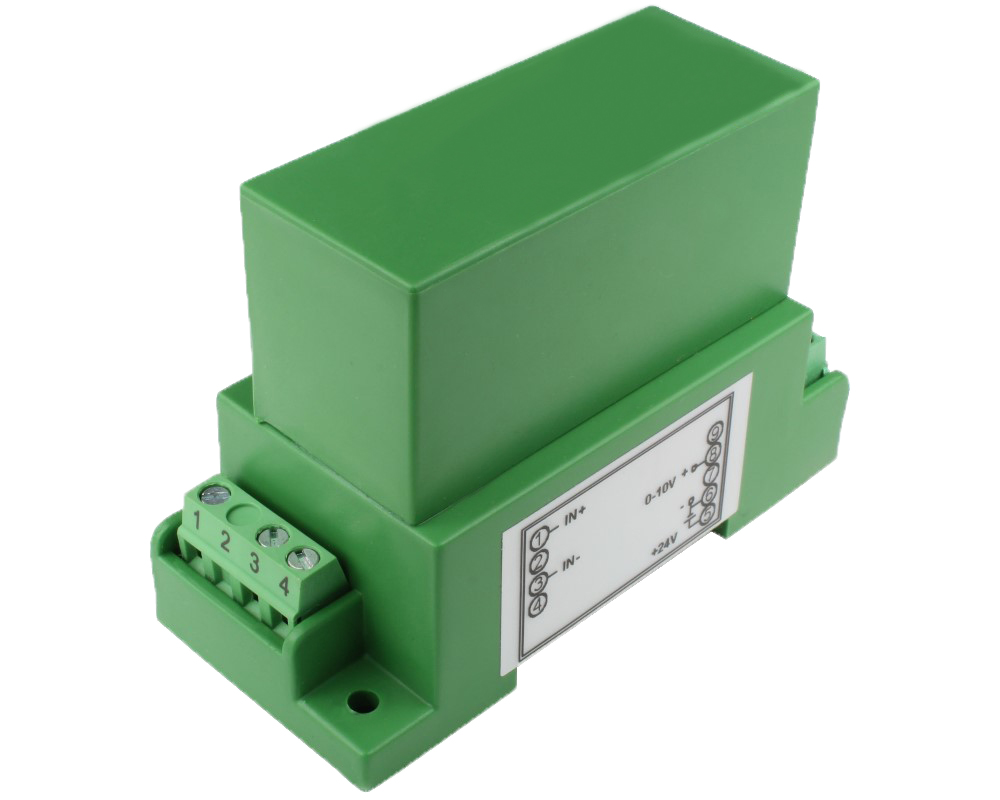

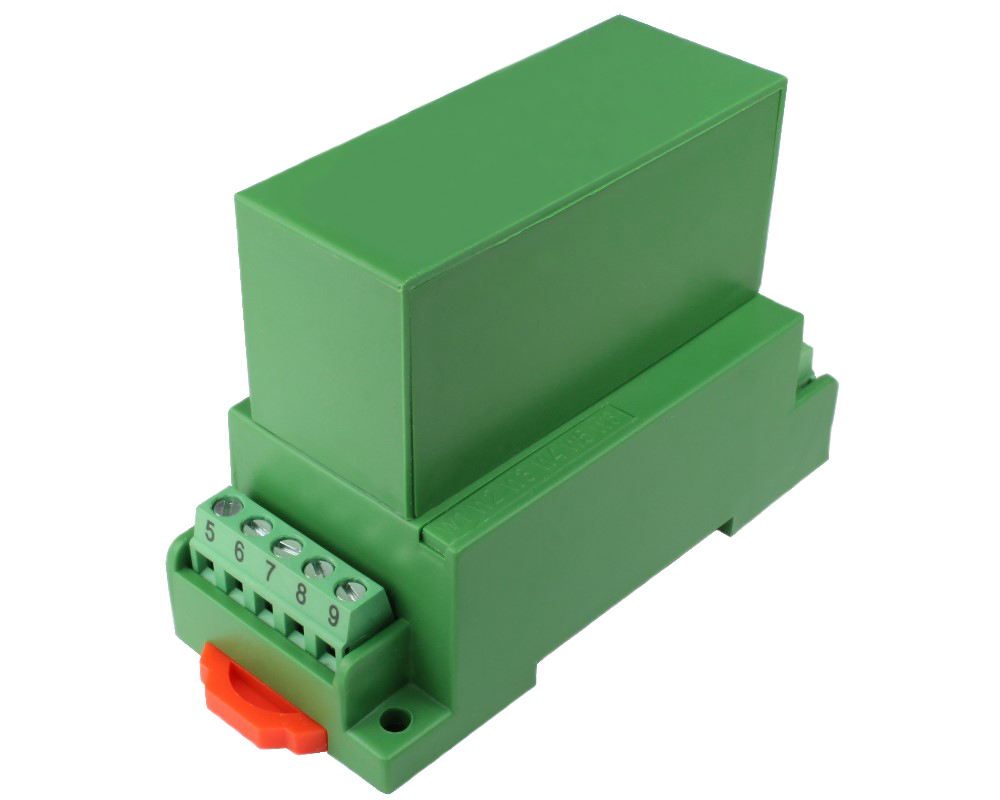

Bidirectional DC Current Sensor CYCT02-43S2, Output: 0-20 mA DC, Power Supply: +15 V DC

Preview: Bidirectional DC Current Sensor CYCT02-43S2, Output: 0-20 mA DC, Power Supply: +15 V DC Preview: Bidirectional DC Current Sensor CYCT02-43S2, Output: 0-20 mA DC, Power Supply: +15 V DC
Bidirectional DC Current Sensor CYCT02-43S2, Output: 0-20 mA DC, Power Supply: +15 V DC
Bidirectional DC Current Sensor CYCT02-43S2, Output: 0-20 mA DC, Power Supply: +15 V DC

Quantity Unit price
until 4 € 77.64 *
from 5 € 70.58 *
from 10 € 64.16 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
The CYCT02-xnS2 DC current sensor/transducer works according Magnetic Modulation and is designed... more
Close menu
Bidirectional DC Current Sensor CYCT02-43S2, Output: 0-20 mA DC, Power Supply: +15 V DC

The CYCT02-xnS2 DC current sensor/transducer works according Magnetic Modulation and is designed for applications to measurement and monitoring of DC current. The output signal (DC voltage or current) of this transducer is proportional to the input DC current. They are suitable for measurements and long time monitoring of DC currents and can applied to power supply management, DC motor drivers, battery chargers and systems etc.

Applications

  • Power supply management
  • DC motor drives
  • Battery chargers and systems
  • Mobile applications
Technical Properties
more
Close menu
Nominal Input Current: 0-500mA, 0-1A, 0-2A, 0-5A
Current Type: DC
Window Type: No Window
Direction: bidirectional
Output Signal: 0-20 mA DC
Operating Temperature: -10°C ~ +60°C
Power Supply: +15 V DC
Accuracy: 0.5%
Response Time: ≤15ms
Data Sheets
more
Close menu
Data sheets to download:
