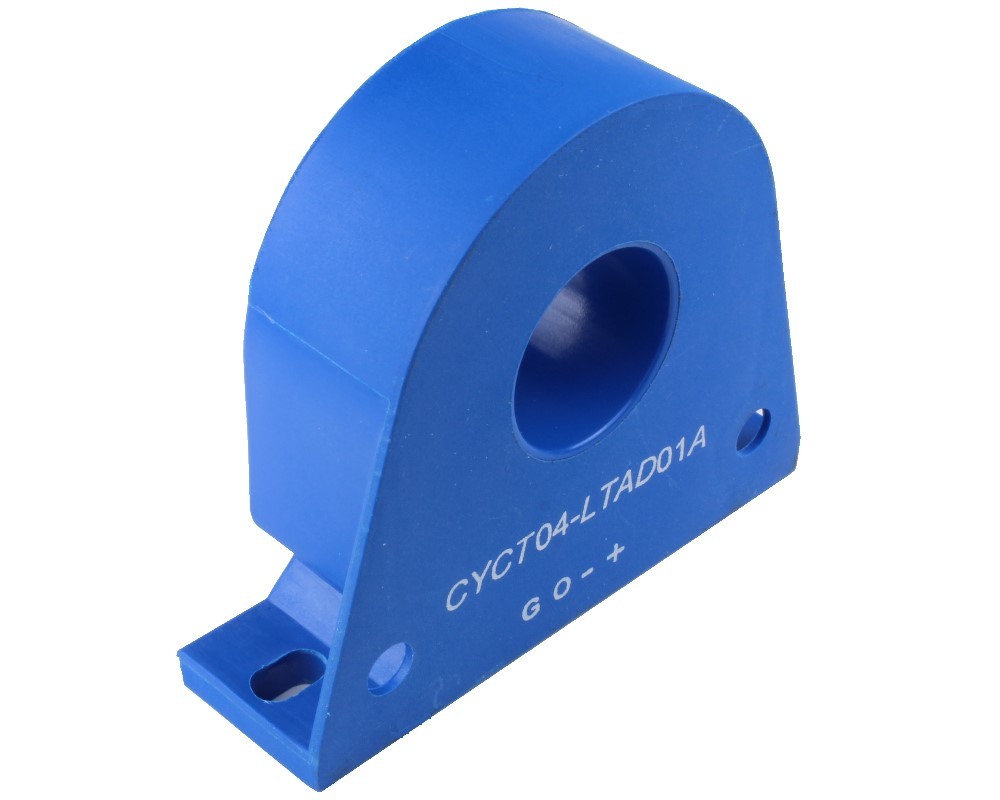

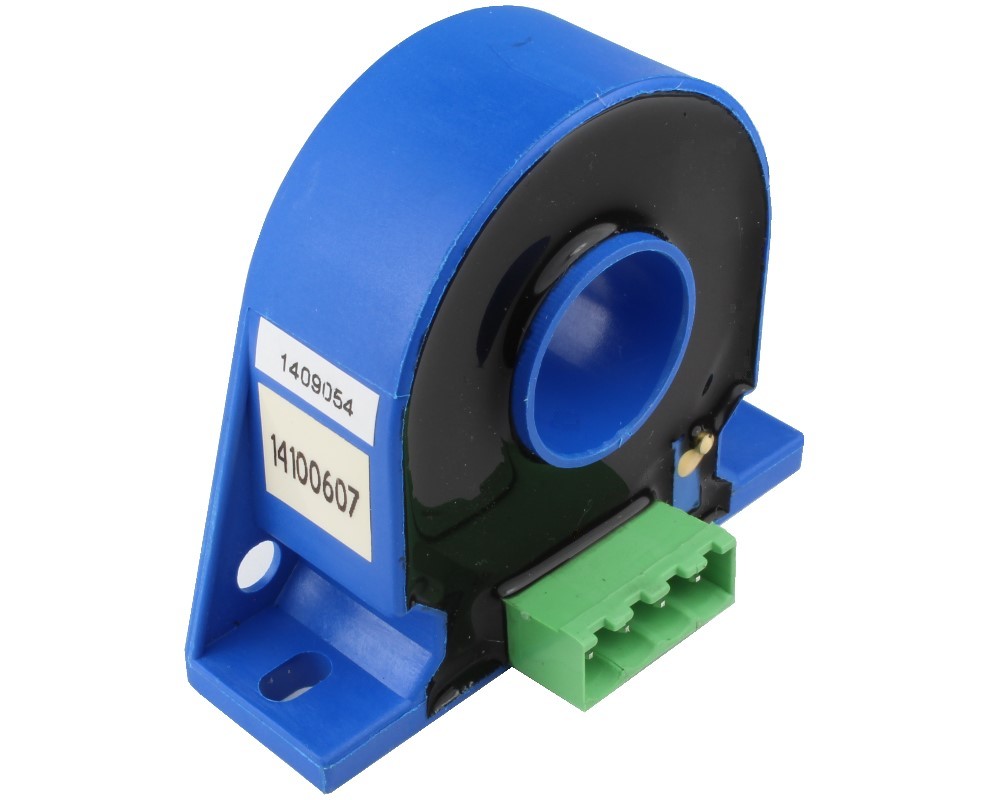

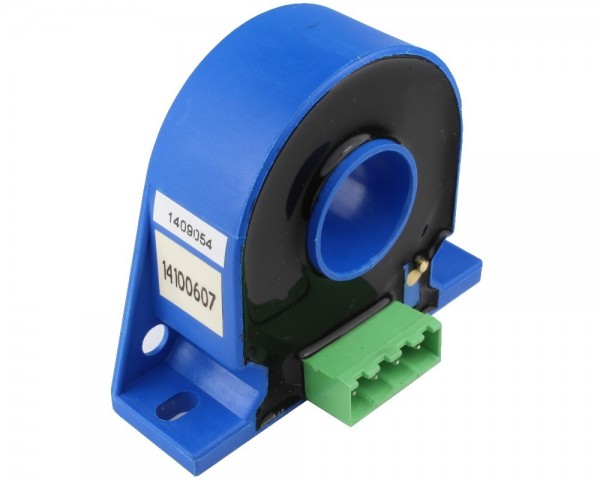

DC Current Sensor CYCT04-LTAD, Output: ±5 V DC, Power Supply: ±15 V DC, Window: Ø 20 mm

Preview: DC Current Sensor CYCT04-LTAD, Output: ±5 V DC, Power Supply: ±15 V DC, Window: Ø 20 mm Preview: DC Current Sensor CYCT04-LTAD, Output: ±5 V DC, Power Supply: ±15 V DC, Window: Ø 20 mm
DC Current Sensor CYCT04-LTAD, Output: ±5 V DC, Power Supply: ±15 V DC, Window: Ø 20 mm
DC Current Sensor CYCT04-LTAD, Output: ±5 V DC, Power Supply: ±15 V DC, Window: Ø 20 mm

Quantity Unit price
until 4 € 48.06 *
from 5 € 43.70 *
from 10 € 39.72 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 13 pieces (3-4 weeks if more)

Nominal Input Current:

Description Technical Properties Data Sheets
Description
This current sensor series is based on magnetic modulation principle and has good stability for... more
Close menu
DC Current Sensor CYCT04-LTAD, Output: ±5 V DC, Power Supply: ±15 V DC, Window: Ø 20 mm

This current sensor series is based on magnetic modulation principle and has good stability for measuring 1A~100A DC current and high isolation between primary current and secondary output signal. This sensor can be used for measurement of DC currents.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Various power supply
  • Communication systems
  • Leakage current measurement
  • Numerical controlled machine tools
  • Current difference measurement
  • Electric circuits measurement
  • Microcomputer monitoring
  • Electric power network monitoring
Technical Properties
more
Close menu
Nominal Input Current: 0-1A, 0-5A, 0-10A, 0-20A, 0-30A, 0-40A, 0-50A, 0-60A, 0-75A, 0-100A
Window Type: Round
Accuracy: 0.5%
Output Signal: ±5V DC
Power Supply: ±15 V DC
Operating Temperature: -25°C ~ +85°C
Direction: bidirectional
Window Size (mm): Ø 20
Current Type: DC
Response Time: <20ms
