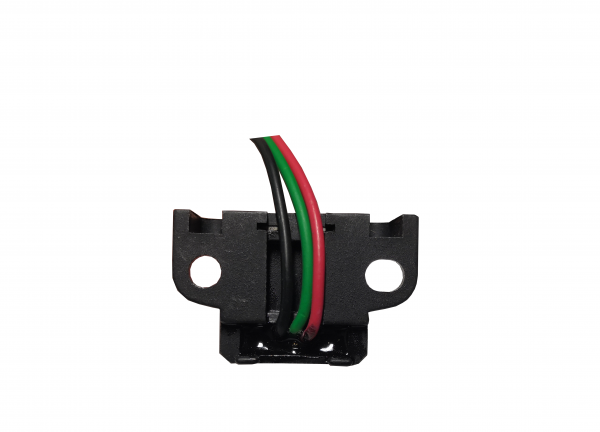

ChenYang Hall-Effect Vane Sensor CYHME1AV is designed to work in the conditions of automobile environment. The device is produced in compliance with the international standard and has the features: modern design, accurateness, endurance, narrow temperature drifting, smooth and clean output curve as well as non instantaneous dithering.
The sensor is applicable to engines with electronic ejection. The main applications are in automobile industry, i.e. as a breakerless trigger in electronic systems, in control engineering, especially in those areas where switches/ sensors must operate maintenance-free under harsh environmental conditions, e.g. rpm sensors, limit switches, position sensors, speed measurements, shaft encoders, scanning of coding disks etc.
The CYHME1AV is replacement for the similar product 1AV12F. It is compatible in electrical and mechanical properties but with different circuitry principle.
- Contactless switch/sensor with open collector output (40mA)
- Static switching/sensing
- High switching/sensing frequency
- Hermetically sealed with plastic
- Unaffected by dirt, light and vibration
- Large temperature and voltage ranges
- Integrated protection of overvoltage etc.
If you require a different cable length, please send us a request via our Contact Form.
|Rise/Fall time:||2µs / 2µs|
|Cross Reference:||1AV11F, 1AV12F, 1AV13F|
|Operating Temperature:||-40°C~ +150°C|
|Operation/Release distance:||1.45mm / 2.29mm|
|Output type:||NPN (OC)|
|Power Supply:||4.5V ~ 24V DC|
