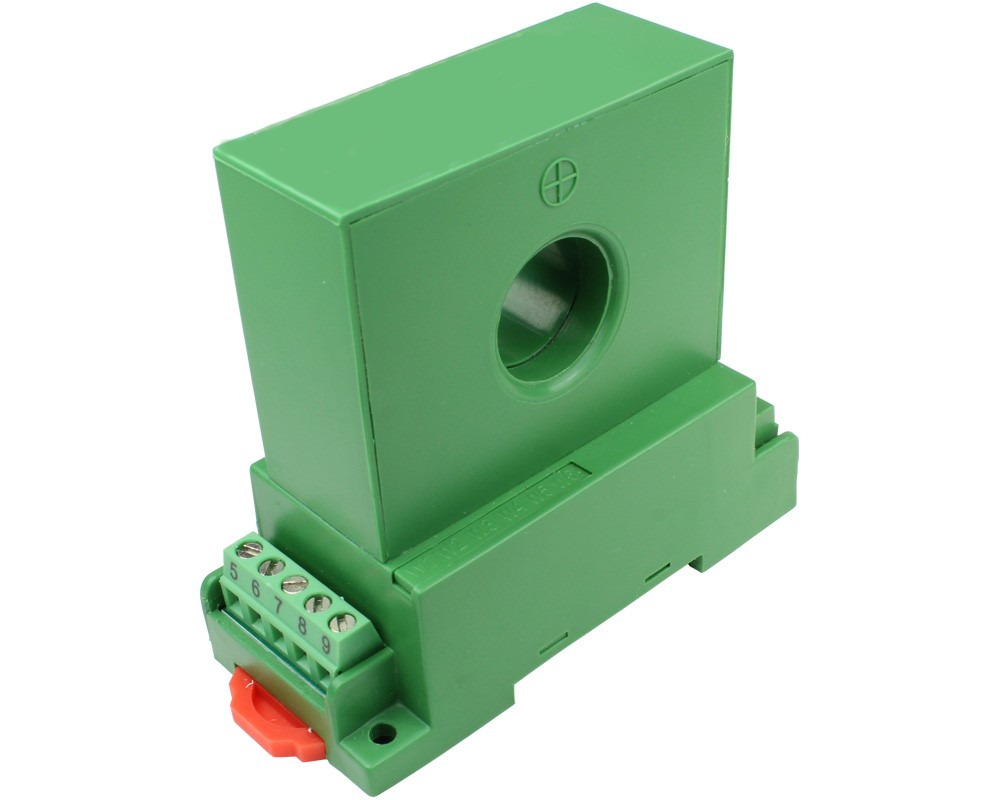

Self-Powered AC Current Sensor CYCS11-30S3, Output: 0-5V DC, Power Supply: None, Window: Ø 20 mm

Preview: Self-Powered AC Current Sensor CYCS11-30S3, Output: 0-5V DC, Power Supply: None, Window: Ø 20 mm Preview: Self-Powered AC Current Sensor CYCS11-30S3, Output: 0-5V DC, Power Supply: None, Window: Ø 20 mm
Self-Powered AC Current Sensor CYCS11-30S3, Output: 0-5V DC, Power Supply: None, Window: Ø 20 mm
Self-Powered AC Current Sensor CYCS11-30S3, Output: 0-5V DC, Power Supply: None, Window: Ø 20 mm

Quantity Unit price
until 4 € 62.11 *
from 5 € 56.47 *
from 10 € 51.34 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
The sensor CYCS11-x0S3 is a self-powered single phase ac current transducer. The input and... more
Close menu
Self-Powered AC Current Sensor CYCS11-30S3, Output: 0-5V DC, Power Supply: None, Window: Ø 20 mm

The sensor CYCS11-x0S3 is a self-powered single phase ac current transducer. The input and outputs are electrically isolated from each other. It needs no external power supply. Its ac current input is achieved by passing through the aperture Ø20mm of the case. The output is voltage 0-5V DC, 0-10VDC or instantaneous value ±5V. It can be widely applied to various measuring and controlling systems such as communication system, electrical power system, railway and various industrial control systems.

Application

  • Multi-point current sensing and control panels
  • Monitor motor faults
  • Monitor heating elements
  • Monitor lighting elements
Technical Properties
more
Close menu
Nominal Input Current: 0-2A, 0-5A, 0-10A, 0-20A, 0-50A, 0-75A, 0-100A, 0-150A, 0-200A
Window Type: Round
Response Time: ≤500ms
Output Signal: 0-5 V DC
Operating Temperature: -10°C ~ +60°C
Accuracy: 1%
Window Size (mm): Ø 20
Current Type: AC
Power Supply: None
Data Sheets
more
Close menu
Data sheets to download:
