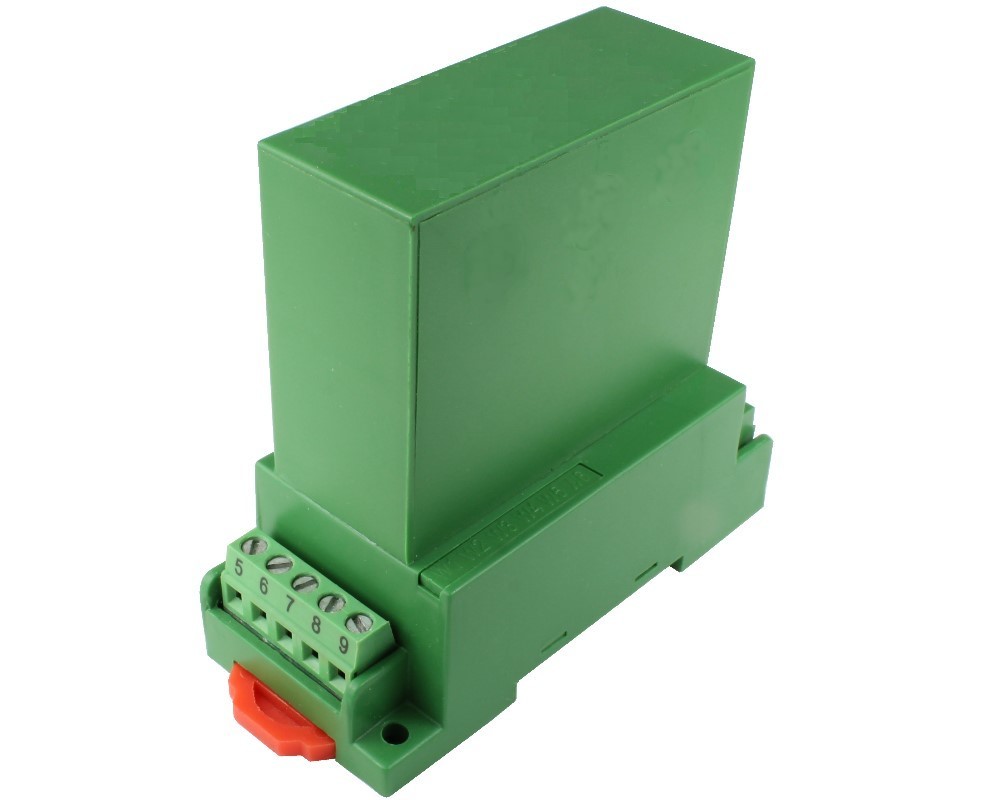

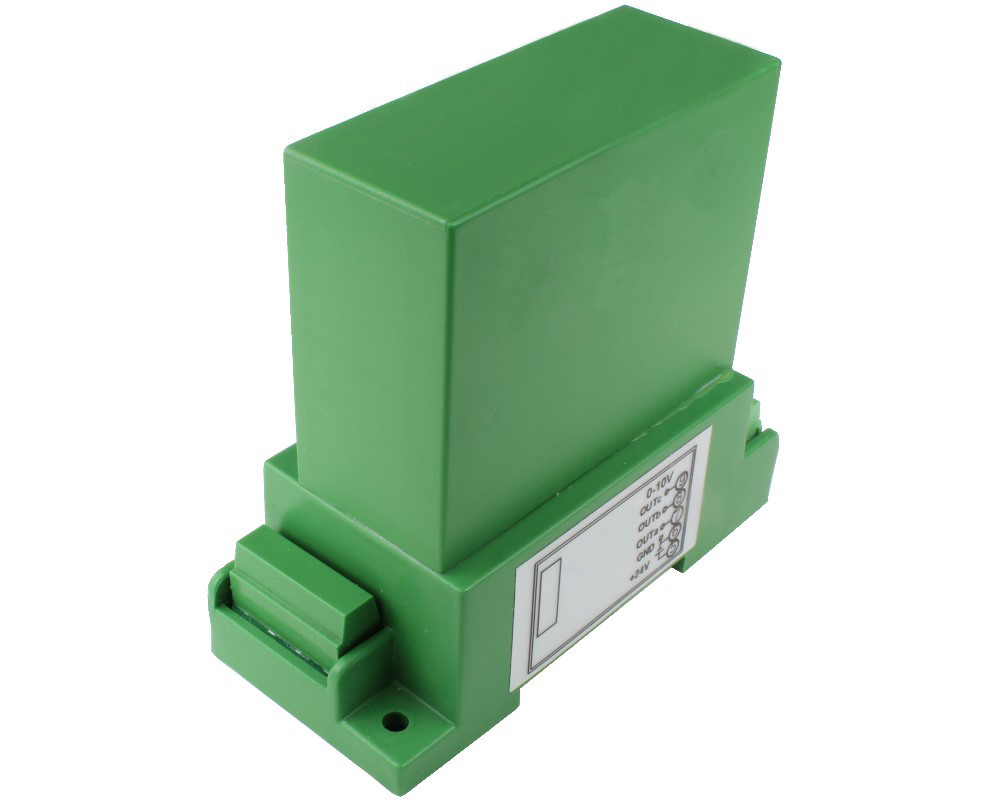

Unidirectional DC Current Sensor CYCT01-32S3, Output: 0-5 V DC, Power Supply: +12 V DC

Preview: Unidirectional DC Current Sensor CYCT01-32S3, Output: 0-5 V DC, Power Supply: +12 V DC Preview: Unidirectional DC Current Sensor CYCT01-32S3, Output: 0-5 V DC, Power Supply: +12 V DC
Unidirectional DC Current Sensor CYCT01-32S3, Output: 0-5 V DC, Power Supply: +12 V DC
Unidirectional DC Current Sensor CYCT01-32S3, Output: 0-5 V DC, Power Supply: +12 V DC

Quantity Unit price
until 4 € 92.43 *
from 5 € 84.03 *
from 10 € 76.39 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
The CYCT01-xnS3 DC current sensor/transducer works according to Photoelectrical Induction and is... more
Close menu
Unidirectional DC Current Sensor CYCT01-32S3, Output: 0-5 V DC, Power Supply: +12 V DC

The CYCT01-xnS3 DC current sensor/transducer works according to Photoelectrical Induction and is designed for applications to measurement and monitoring of DC current. The output signal (DC voltage or current) of this transducer is proportional to the input DC current. They are suitable for measurements and long-time monitoring of DC currents and can be applied to power supply management, DC motor drivers, battery chargers and systems, etc.

Technical Properties
more
Close menu
Nominal Input Current: 0-500mA, 0-1A, 0-2A, 0-5A
Current Type: DC
Window Type: No Window
Direction: unidirectional
Operating Temperature: -10°C ~ +60°C
Output Signal: 0-5 V DC
Power Supply: +12 V DC
Response Time: ≤10ms
Accuracy: 0.5%
Frequency Bandwith: DC ~10kHz
Data Sheets
more
Close menu
Data sheets to download:
