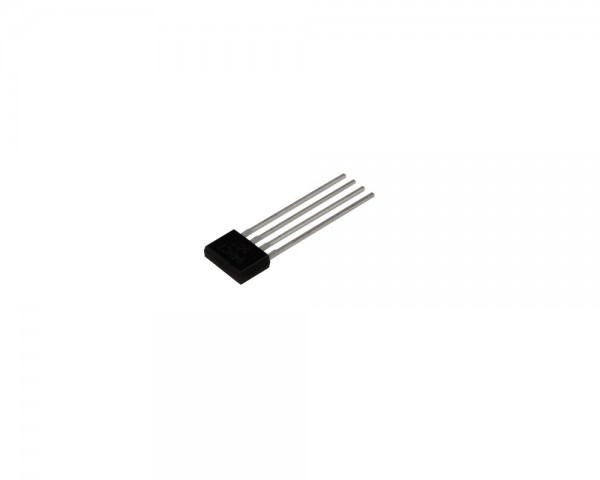

Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4-30VDC

Quantity	Unit price
until 9	€ 3.03 *
from 10	€ 2.53 *
from 20	€ 2.30 *
from 50	€ 2.09 *
from 100	€ 1.90 *
from 200	€ 1.73 *
from 500	€ 1.57 *
from 1000	€ 1.43 *
from 3000	€ 1.34 *
from 5000	€ 1.31 *
from 10000	€ 1.27 *
from 50000	€ 1.23 *
from 100000	€ 1.19 *
from 600000	€ 1.15 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Article-Nr: CYGTS9804
Serial-Nr: CYGTS9804
Request on this Article
Data Sheet Download
Data Sheet Download (German)

The CYGTS9804 is a sophisticated IC featuring an on-chip 12-bit A/D Converter and logic that... more

Close menu

Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4-30VDC

The CYGTS9804 is a sophisticated IC featuring an on-chip 12-bit A/D Converter and logic that acts as a digital sample and hold circuit. A separate 6-bit D/A converter provides a fixed hysteresis. The sensor does not have a chopper delay. It uses a single Hall plate which is immune to rotary alignment problems. The bias magnet can be from 1000GS to 4000Gs. As the signal is sampled, the logic recognizes an increasing or decreasing flux density. The output has been designed as a two wire current interface. The IDD (off) is 7mA (Typ.) when the flux has reached its peak and decreased by an amount equal to the hysteresis. Similarly the IDD (on) will reach to 14mA (Typ.) when the flux has reached its minimum value and increased by an amount equal to the hysteresis.

Characteristics

High sensitivity
Two-wire current interface
Zero speed detection
Short circuit protection
Insensitive to orientation
Wide voltage working range
Self-adjusting magnetic range
On-chip 12 bit A/D converter
High speed operation
No chopper delay applications
RoHS compliant

Applications

Automotive and Heavy Duty Vehicles:

ABS Sensors
Camshaft and crankshaft speed and position
Transmission speed
Tachometers

Industrial Areas:

Sprocket speed
Chain link conveyor speed/distance
Stop motion detector
High speed low cost proximity
Tachometers, counters.

Close menu

Operating Temperature:	-40°C~ +150°C
Power Supply:	4.0V ~ 30V DC
Rise/Fall time:	0.4µs/0.4µs
Output Signal:	Two-wire,Current Output
Package/Size:	SIP4/5.22x3.65x1.55mm
Sensing gap/distance:	1.0mm ~ 3.0mm
Bias Magnetic Field:	100~400mT
