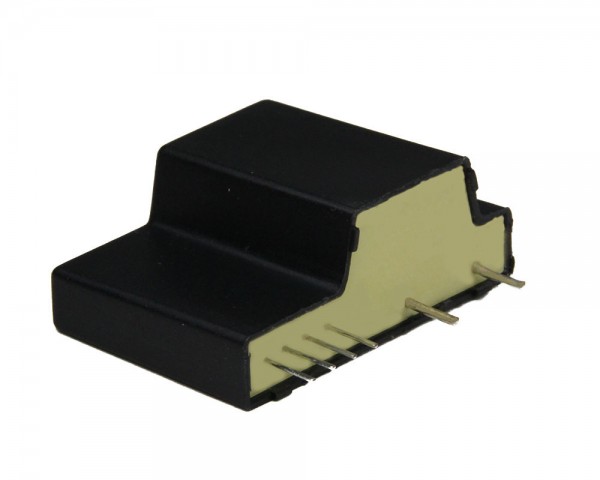

Open Loop AC/DC Hall Current Sensor CYHCS003, Output: 0~±4 V AC/DC, Power Supply: ±12 V ~±15 V DC

Open Loop AC/DC Hall Current Sensor CYHCS003, Output: 0~±4 V AC/DC, Power Supply: ±12 V ~±15 V DC
Quantity Unit price
until 4 € 8.14 *
from 5 € 7.40 *
from 10 € 6.74 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
Dieser Stromsensor basiert auf dem Hall- Effekt- Prinzip mit offener Kreisstruktur. Er kann für... more
Close menu
Open Loop AC/DC Hall Current Sensor CYHCS003, Output: 0~±4 V AC/DC, Power Supply: ±12 V ~±15 V DC

Dieser Stromsensor basiert auf dem Hall- Effekt- Prinzip mit offener Kreisstruktur. Er kann für Messungen von DC und AC Strom sowie von Impulsstrom verwendet werden. Der Ausgang des Stromwandlers stellt die reale Welle des zumessenden Stroms im Primärleiter dar.

Produkteigenschaften

  • Geringe Größe, eingekapselt
  • Exzellente Genauigkeit
  • Sehr gute Linearität
  • Geringer Stromverbrauch
  • Stromüberlastbarkeit

Anwendungen

  • Mehrzweck-Wechselrichter
  • AC/DC Variable Geschwindigkeitstreiber
  • Batteriebetriebene Anwendungen
  • Nicht unterbrechbare Stromversorgung (UPS)
  • Umschaltbare Stromversorgung
Technical Properties
more
Close menu
Nominal Input Current: 0-3A, 0-5A, 0-10A, 0-15A, 0-20A, 0-25A, 0-30A, 0-35A, 0-45A, 0-50A
Sensor Type: Open-Loop
Power Supply: ±12 V DC, ±15 V DC
Output Signal: ±4V AC/DC
Current Type: AC/DC
Window Type: No Window, PCB Mounted
Direction: bidirectional
Accuracy: 1%
Linearity: 1%
Operating Temperature: -10°C ~ +80°C
Frequency Bandwith: DC ~ 50kHz
Data Sheets
more
Close menu
Data sheets to download:
