Bipolar Hall Effect Switch Ics CYD513, Power Supply: 4.5V -24V, Power Supply current: 10mA

Preview: Bipolar Hall Effect Switch Ics CYD513, Power Supply: 4.5V -24V, Power Supply current: 10mA Preview: Bipolar Hall Effect Switch Ics CYD513, Power Supply: 4.5V -24V, Power Supply current: 10mA
Bipolar Hall Effect Switch Ics CYD513, Power Supply: 4.5V -24V, Power Supply current: 10mA
Bipolar Hall Effect Switch Ics CYD513, Power Supply: 4.5V -24V, Power Supply current: 10mA

Quantity Unit price
until 9 € 1.64 *
from 10 € 1.37 *
from 20 € 1.14 *
from 50 € 0.95 *
from 100 € 0.79 *
from 200 € 0.65 *
from 500 € 0.55 *
from 1000 € 0.45 *
from 3000 € 0.43 *
from 5000 € 0.42 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
This Hall-effect switch is monolithic integrated circuit consisting of a voltage regulator,... more
Close menu

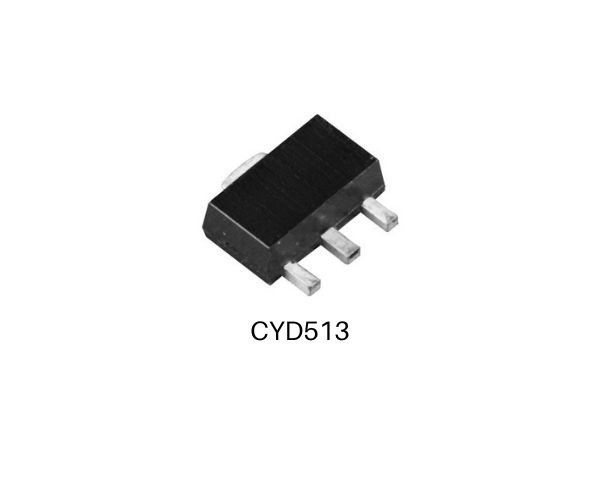

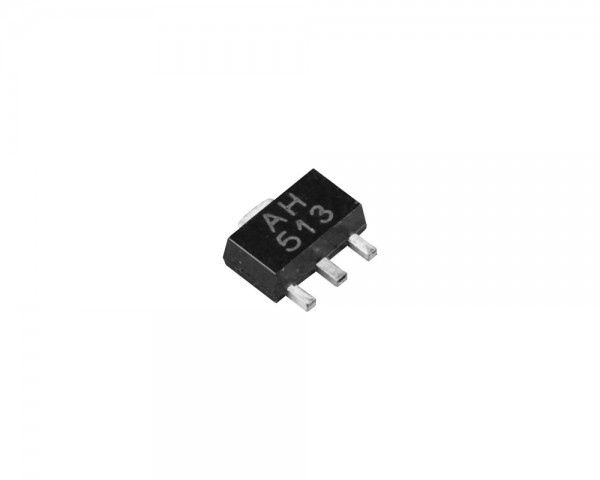

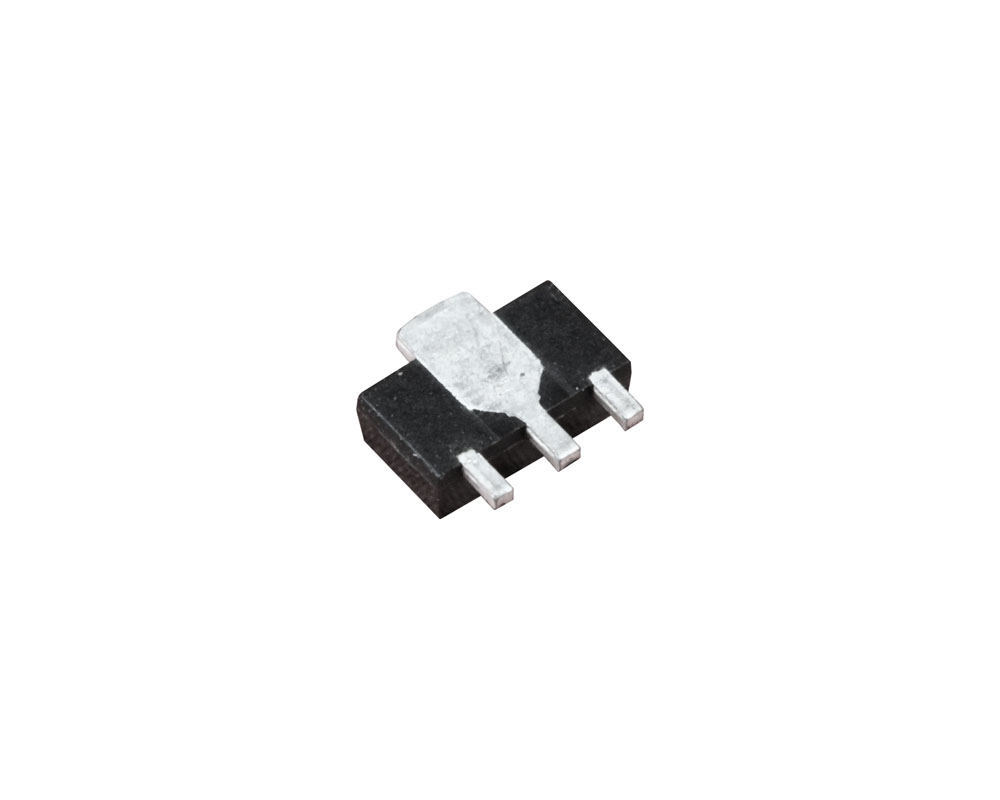

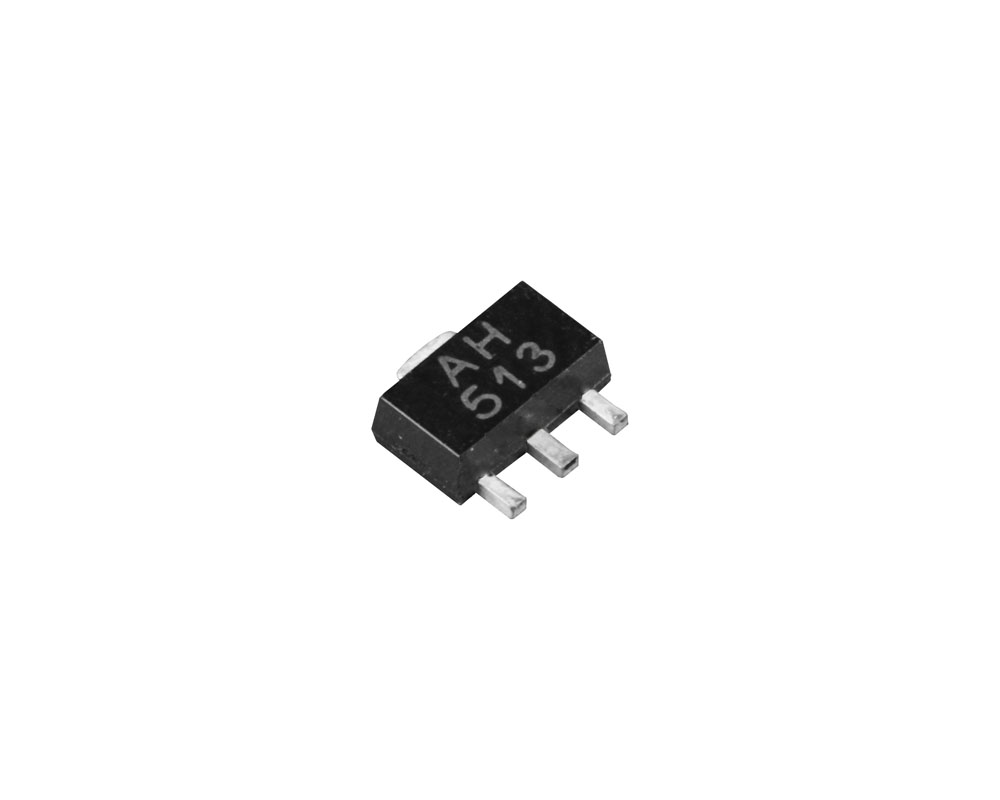

Bipolar Hall Effect Switch Ics CYD513, Power Supply: 4.5V -24V, Power Supply current: 10mA

This Hall-effect switch is monolithic integrated circuit consisting of a voltage regulator, Hall-voltage generator, differential amplifier, Schmitt trigger, temperature compensation circuit and open-collector output stage. Its input is a magnetic flux density signal and output is a digital voltage signal.

Characteristics

  • Wide supply voltage range
  • Fast response time
  • Wide frequency and temperature range
  • Long operating life
  • Small size, convenient installing
  • Output compatible with all digital logic families
  • Bipolar sensor
  • ROHS compliant

Application

  • Contactless switch
  • Position control
  • Speed measurement
  • Revolution detection
  • Isolation measurement
  • Brushless DC motor
  • Automotive igniters
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Power Supply: 4.5V ~ 24V DC
Max. Supply current/voltage: 10 mA
Operation Point: 4.0 mT
Release Point: -4.0 mT
Hysteresis: 8.0 mT
Package/Size: SOT89/4.5x2.5x1.5mm
Data Sheets
more
Close menu
Data sheets to download:
