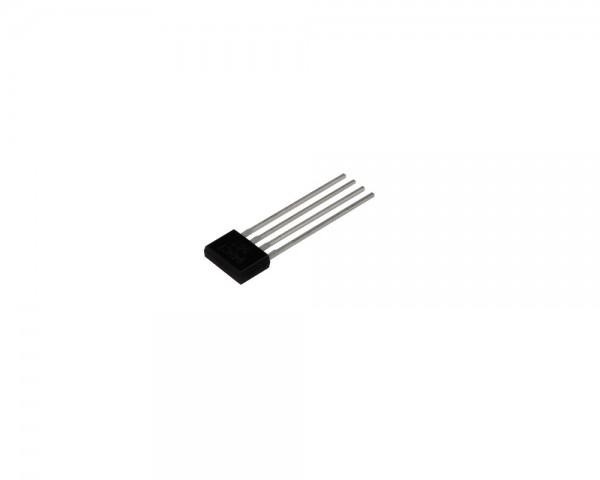

Bipolar Hall Effect Latching Switch Ics CYD277, Power Supply: 4.5V -20V, supply current: 200mA

Bipolar Hall Effect Latching Switch Ics CYD277, Power Supply: 4.5V -20V, supply current: 200mA
Quantity Unit price
until 9 € 0.70 *
from 10 € 0.58 *
from 20 € 0.49 *
from 50 € 0.40 *
from 100 € 0.35 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
CYD277 series Hall-effect switch IC is a kind of one-chip semiconductor integrated circuit,... more
Close menu
Bipolar Hall Effect Latching Switch Ics CYD277, Power Supply: 4.5V -20V, supply current: 200mA

CYD277 series Hall-effect switch IC is a kind of one-chip semiconductor integrated circuit, which is composed of a reverse voltage protector, a precise voltage regulator, Hall voltage generator, a differential amplifier, Schmitt trigger, a temperature compensator and two open-collector output on a single silicon chip. The main characteristics are wide operating voltage range, high sensitivity to magnetic field, good load-carrying and reverse protection abilities. It is the best component for brushless fan, because its load-carrying ability is up to 400mA with complementary output.

Product Characteristics

  • Smart and Single Chip Integrated
  • Temperature Compensation and Wide Operating Temperature Range
  • Good Capability of Load
  • Reverse Protection
  • Open Collector Complementary Outputs
  • Low Price , 4 Pin Epoxy Package
  • Soldering Temperature can be Lowered Because of Alloy Tin Electroplating
  • High Reliability

Application

  • High Sensitive Non-contact Switch
  • DC Brushless Motor
  • DC Brushless Fan
Technical Properties
more
Close menu
Operating Temperature: -20°C ~ +85°C
Hysteresis: 8.0 mT
Power Supply: 4.5V ~ 20V
Max. Supply current/voltage: 200mA
Operation Point: 8mT
Release Point: -8mT
Package/Size: SIP/5.13x3.6x1.6
Data Sheets
more
Close menu
Data sheets to download:
