Bipolar Hall Effect Latching Switch Ics CYD3601, Power Supply: 2.5V -18V, supply current: 8mA

Preview: Bipolar Hall Effect Latching Switch Ics CYD3601, Power Supply: 2.5V -18V, supply current: 8mA Preview: Bipolar Hall Effect Latching Switch Ics CYD3601, Power Supply: 2.5V -18V, supply current: 8mA
Bipolar Hall Effect Latching Switch Ics CYD3601, Power Supply: 2.5V -18V, supply current: 8mA
Bipolar Hall Effect Latching Switch Ics CYD3601, Power Supply: 2.5V -18V, supply current: 8mA

Quantity Unit price
until 9 € 0.75 *
from 10 € 0.63 *
from 20 € 0.52 *
from 50 € 0.44 *
from 100 € 0.36 *
from 200 € 0.30 *
from 500 € 0.25 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 3014 pieces (3-4 weeks if more)

Package:

Description Technical Properties Data Sheets Product Safety Information
Description
The CYD3601 is a bipolar Hall Effect switch with a latched digital output. The built-in dynamic... more
Close menu
Bipolar Hall Effect Latching Switch Ics CYD3601, Power Supply: 2.5V -18V, supply current: 8mA

The CYD3601 is a bipolar Hall Effect switch with a latched digital output. The built-in dynamic offset cancellation of pre-amplifier stage achieves optimal symmetrical magnetic sensing. This Hall Effect IC is optimal for DC brushless fan applications. The supply voltage range is from 2.5V to 18V.

Features

  • 2.5V to 18V power supply
  • Built-in dynamic offset cancellation
  • Small size, convenient installing
  • High balance and low thermal drift
  • magnetic sensing
  • ROHS Compliant

Applications

  • Brushless DC motor
  • VCD/DVD loader, CD/DVD-ROM
  • Contactless switch
  • Cover detector
  • Speed measurement
  • Home applications
  • Home safety



Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +85°C
Max. Supply current/voltage: 8 mA
Operation Point: 3.0 mT
Release Point: -3.0 mT
Hysteresis: 6.0 mT
Power Supply: 2.5V ~ 18V DC

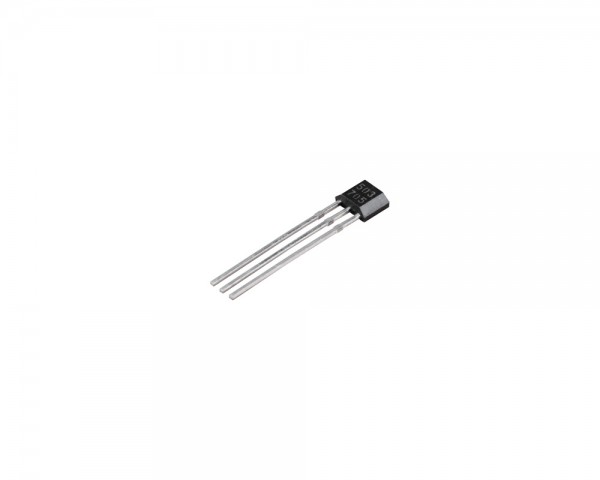

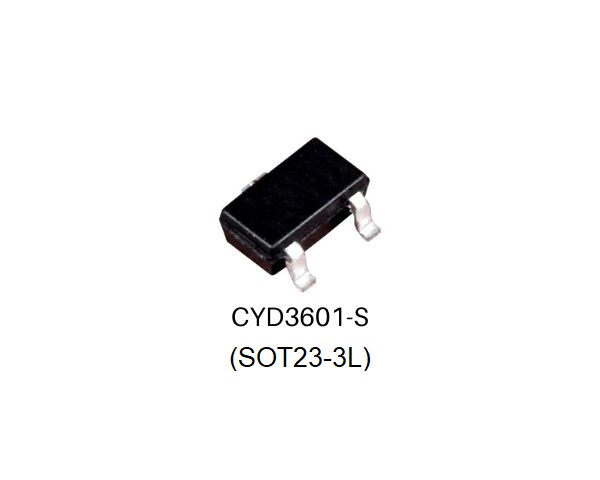

Package/Size: SOT23/2.9x1.6x1.1mm, TO92/4.0x3.1x1.5mm
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
