Bipolar Hall Effect Latching Switch IC CYDF41, Power Supply: 3,0V~28V, Supply Current: 10mA, Operating Temperature: -40°C~+125°C

Bipolar Hall Effect Latching Switch IC CYDF41, Power Supply: 3,0V~28V, Supply Current: 10mA, Operating Temperature: -40°C~+125°C
Quantity Unit price
until 9 € 1.09 *
from 10 € 0.92 *
from 20 € 0.77 *
from 50 € 0.64 *
from 100 € 0.54 *
from 200 € 0.44 *
from 500 € 0.37 *
from 1000 € 0.29 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
The CYDF41 is an integrated Hall Effect latched sensor designed for electronic commutation of... more
Close menu

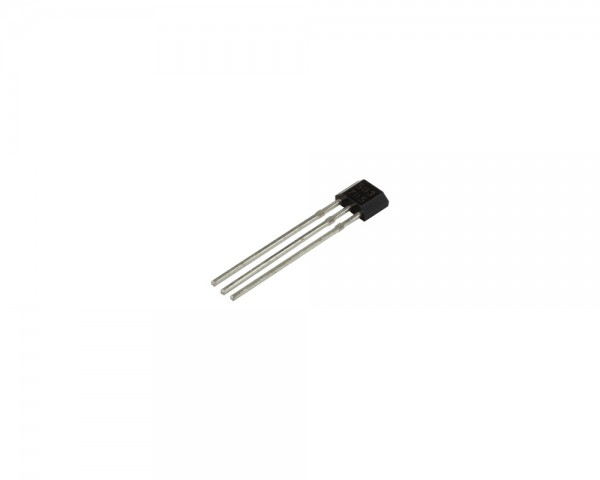

Bipolar Hall Effect Latching Switch IC CYDF41, Power Supply: 3,0V~28V, Supply Current: 10mA, Operating Temperature: -40°C~+125°C

The CYDF41 is an integrated Hall Effect latched sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal band gap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range. A north pole of sufficient strength will turn the output ON. In the absence of a magnetic field, the output is OFF.

Features

  •   Wide operating voltage range: 3.0V to 28V
  •   Reverse polarity protection
  •   Maximum output sink current
  •   Package : SIP-3L
  •   Open-Collector pre-drive
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +125°C
Package/Size: SIP3L/4.1x3.05x1.50mm
Max. Supply current/voltage: 10 mA
Operation Point: 6.0 mT ~ 8.5mT
Release Point: -8.5mT ~ -6.0mT
Hysteresis: 3.0 mT ~ 12.0 mT
Power Supply: 3.0V ~ 28V DC
Data Sheets
more
Close menu
Data sheets to download:
