Bipolar Hall Effect Latching Switch Ics CYD502, Power Supply: 2.7V -30V, supply current: 25mA
| Quantity | Unit price |
|---|---|
| Until 9 |
€1.32
|
| From 10 |
€1.09
|
| From 20 |
€0.92
|
| From 50 |
€0.76
|
| From 100 |
€0.63
|
| From 200 |
€0.52
|
| From 500 |
€0.44
|
Article not in stock, delivery time 3-4 Weeks
Product information "Bipolar Hall Effect Latching Switch Ics CYD502, Power Supply: 2.7V -30V, supply current: 25mA"
CYD502 Hall Effect Switch is a monolithic integrated circuit which switches in response to magnetic field. If a magnetic field with flux lines perpendicular to the sensitive area is applied to the sensor, the biased Hall plate forces a Hall voltage proportional to this field. The Hall voltage is compared with the actual threshold level in the comparator. If the magnetic field exceeds the threshold levels, the output stage is switched to the appropriate state. The built-in hysteresis eliminates oscillation and provides switching behavior of output without bouncing.
Applications
- Brushless DC motors
- Speed measurement
- Counting
- Angle position detection
- Proximity detection
- Home applications
- Home safety
Features
- 2.7V to 30V operation voltage
- Overvoltage protection capability up to 40 V
- High accuracy bipolar switch
- Built-in dynamic offset cancellation
- Open drain output
- Low thermal drift of magnetic sensing
- Qualified according to AEC-Q100 test standard
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Hysteresis: | 5.0mT |
|---|---|
| Max. Supply current/voltage: | 25mA/30V |
| Operating Temperature: | -40°C~ +150°C |
| Operation Point: | 2.5 mT |

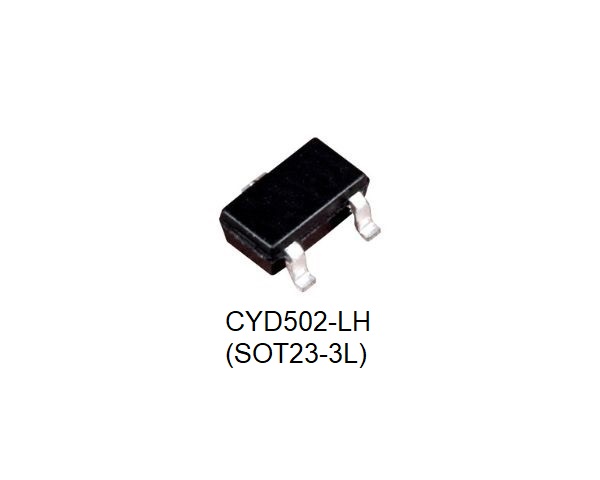

| Package/Size: | SOT23-3L/ 2.92 x 1.60 x 1.15 mm, TO92S/4.1x3.18x1.58mm |
| Power Supply: | 2.7V ~ 30V DC |
| Release Point: | -2.5 mT |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
