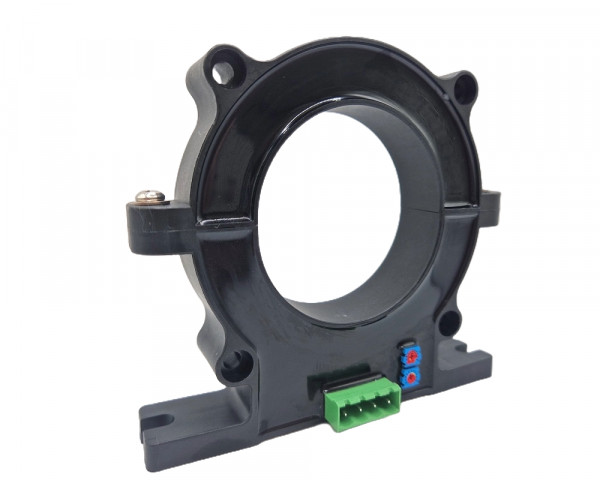

Split Core Hall Effect AC/DC Current Sensor CYHCS-EKFS, Output: 2.5VDC±1.5V AC/DC, Power Supply: +5VD±5%, Window: Ø62mm

Split Core Hall Effect AC/DC Current Sensor CYHCS-EKFS, Output: 2.5VDC±1.5V AC/DC, Power Supply: +5VD±5%, Window: Ø62mm
Quantity Unit price
until 4 € 91.34 *
from 5 € 83.04 *
from 10 € 75.49 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

This Hall Effect current sensor is based on the open-loop principle and designed with a split... more
Split Core Hall Effect AC/DC Current Sensor CYHCS-EKFS, Output: 2.5VDC±1.5V AC/DC, Power Supply: +5VD±5%, Window: Ø62mm

This Hall Effect current sensor is based on the open-loop principle and designed with a split core and high galvanic isolation between the primary conductor and secondary circuit. It can be used for the measurement of AC/DC current etc. The output of the transducer reflects the real wave of the current-carrying conductor.

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Electrolyzing and electroplating equipment
  • Electrically powered locomotive
  • Electric power network monitoring

Features

  • Excellent accuracy
  • Very good linearity
  • Less power consumption
  • Split core window structure
  • Electrically isolating the output of the transducer from the current-carrying conductor
  • No insertion loss
  • Current overload capability



Nominal Input Current: 0-300A, 0-400A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-2000A, 0-4000A, 0-6000A
Sensor Type: Open-Loop
Power Supply: +5 V DC
Output Signal: +2,5 V ± 1,5 V AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): ø 62
Direction: bidirectional
Accuracy: 1%
Linearity: 1,0%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
