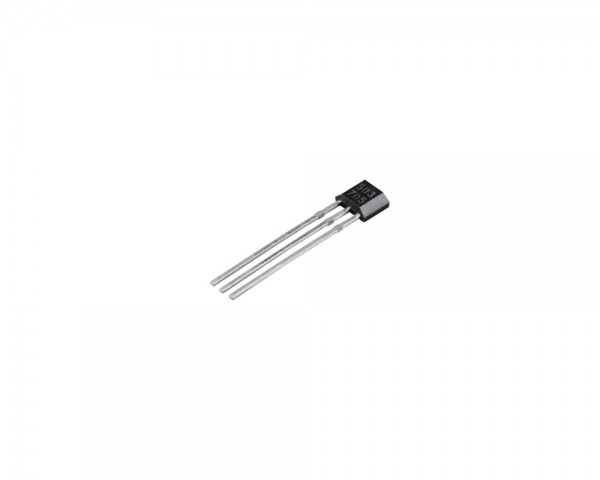

Unipolar Hall Effect Switch Ics CYD3144E, Power Supply: 4.5-24V, supply current: 9mA,Operating Temperature: -40 ~+85°C

Unipolar Hall Effect Switch Ics CYD3144E, Power Supply: 4.5-24V, supply current: 9mA,Operating Temperature: -40 ~+85°C
Quantity Unit price
until 9 € 1.92 *
from 10 € 1.59 *
from 20 € 1.33 *
from 50 € 1.11 *
from 100 € 0.93 *
from 200 € 0.81 *
from 500 € 0.77 *
from 1000 € 0.64 *
from 3000 € 0.49 *
from 5000 € 0.35 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 1019 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
CYD3144E Hall-effect switch integrated circuit is based on the semiconductor monolithic... more
Close menu
Unipolar Hall Effect Switch Ics CYD3144E, Power Supply: 4.5-24V, supply current: 9mA,Operating Temperature: -40 ~+85°C

CYD3144E Hall-effect switch integrated circuit is based on the semiconductor monolithic technology, which includes a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output on a single silicon chip. ICs can convert the input magnetic field signal into digital voltage output.

Characteristics

  • Small size
  • High Sensitivity
  • Quick Response
  • Good Temperature Performance
  • High Accuracy
  • Excellent Reliability

Application

  • Non-contact Switch
  • Automotive Ignition
  • Brake ICs
  • Position control
  • Revolution detection
  • Safe alarm device
  • Textile control system
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +85°C
Power Supply: 4.5V ~ 24V DC
Package/Size: TO92/4.06x3.1x1.5mm
Max. Supply current/voltage: 9 mA
Operation Point: 5.0 mT ~ 20.0 mT
Release Point: 1.0 mT ~ 14.0 mT
Hysteresis: 2.0 mT ~ 8.0 mT
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
