Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Preview: Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C Preview: Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C Preview: Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Quantity Unit price
until 9 € 0.81 *
from 10 € 0.67 *
from 20 € 0.56 *
from 50 € 0.46 *
from 100 € 0.39 *
from 200 € 0.32 *
from 500 € 0.27 *
from 1000 € 0.23 *
from 3000 € 0.21 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Package:

Description Technical Properties Data Sheets
Description
Characteristics 2.5V to 18V operation voltage  Built-in dynamic offset... more
Close menu
Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Characteristics

  • 2.5V to 18V operation voltage
  • Built-in dynamic offset cancellation
  • Small size
  • High balance and low thermal drift of magnetic sensing

Applications

  • VCD/DVD loader, CD/DVD-Rom
  • Cover detector
  • Speed Measurement
  • Home applications
  • Home safety etc.
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +125°C
Max. Supply current/voltage: 25 mA
Operation Point: 9.0 mT ~ 12.0 mT
Release Point: 5.5 mT ~ 11.0 mT
Hysteresis: 1.0 mT ~ 3.5 mT
Power Supply: 2.5V ~ 18V DC

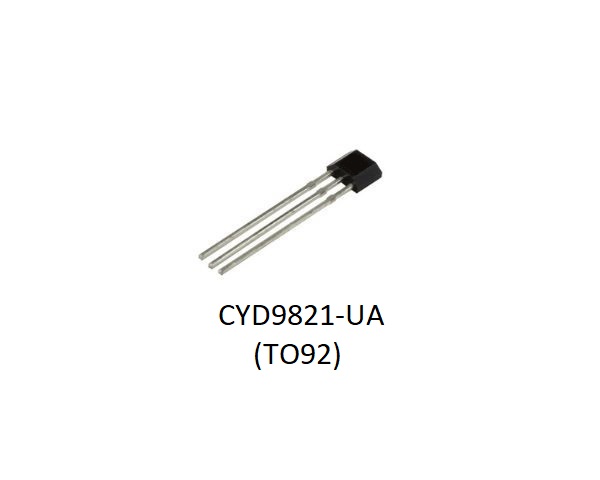

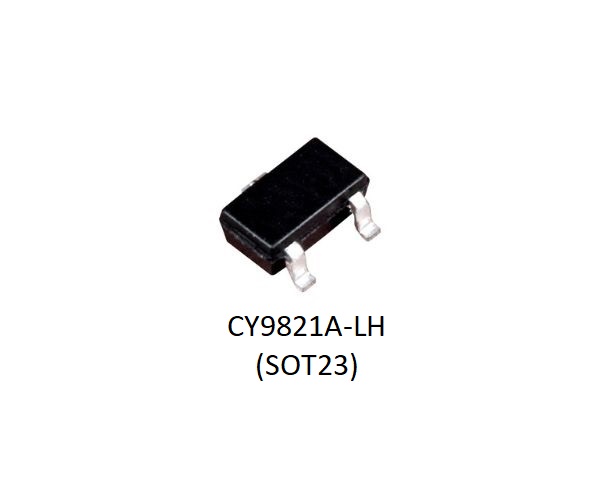

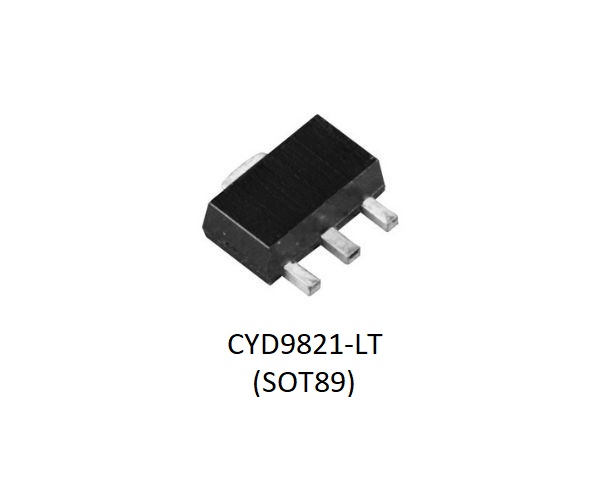

Package/Size: SOT23/2.9x1.8x1.1mm, SOT89/4.5x2.45x1.5mm, TO92/4.0x3.1x1.5mm
Data Sheets
more
Close menu
Data sheets to download:
