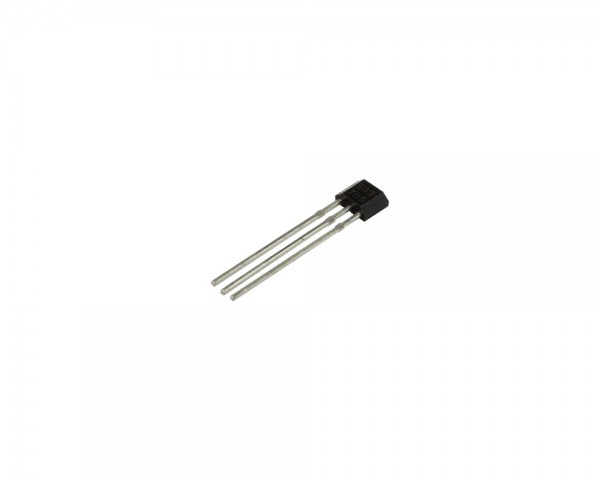

Unipolar Hall Effect Switch Ics CYD443H, Power Supply: 4-30V, Supply current: 5mA, Operating Temperature: -40 ~+150°C

Unipolar Hall Effect Switch Ics CYD443H, Power Supply: 4-30V, Supply current: 5mA, Operating Temperature: -40 ~+150°C
Quantity Unit price
until 9 € 2.50 *
from 10 € 2.08 *
from 20 € 1.74 *
from 50 € 1.44 *
from 100 € 1.20 *
from 200 € 1.00 *
from 500 € 0.83 *
from 1000 € 0.64 *
from 3000 € 0.50 *
from 5000 € 0.44 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 909 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
CYD443H Hall-effect switch integrated circuit for high temperature operating is based on... more
Close menu
Unipolar Hall Effect Switch Ics CYD443H, Power Supply: 4-30V, Supply current: 5mA, Operating Temperature: -40 ~+150°C

CYD443H Hall-effect switch integrated circuit for high temperature operating is based on Hall-effect principle and the semiconductor monolithic technology, which includes a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output on a single silicon chip. ICs can convert the input magnetic field signal into digital voltage output.

 Characteristics

  • Small size
  • High Sensitivity
  • Quick Response
  • High temperature (-40°C ~+150°C)
  • Good Temperature Performance
  • High Accuracy
  • Excellent Reliability

Application

  • Non-contact Switch
  • Automotive Ignition
  • Brake ICs
  • Position control
  • Revolution detection
  • Automobile Electronics
  • Brushless Motor
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Power Supply: 4.0V ~ 30V DC
Package/Size: TO92/4.1x3.18x1.58mm
Max. Supply current/voltage: 5 mA
Operation Point: 3.0 mT ~ 10.5 mT
Release Point: 2.0 mT ~ 7.5 mT
Hysteresis: 3.0 mT
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
