Unipolar Hall Effect Switch Ics CYD511, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C
Quantity | Unit price |
---|---|
until 9 | € 1.06 * |
from 10 | € 0.88 * |
from 20 | € 0.74 * |
from 50 | € 0.61 * |
from 100 | € 0.51 * |
from 200 | € 0.43 * |
from 500 | € 0.36 * |
from 1000 | € 0.30 * |
from 3000 | € 0.27 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks
- Article-Nr: CYD511-UA
- Serial-Nr: CYD511
- Request on this Article
- Data sheet download
- Data sheet download (Deutsch)
CYD511 Hall Effect Switch is a monolithic integrated circuit which switches in response to... more
Unipolar Hall Effect Switch Ics CYD511, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C
CYD511 Hall Effect Switch is a monolithic integrated circuit which switches in response to magnetic field. If a magnetic field with flux lines perpendicular to the sensitive area is applied to the sensor, the biased Hall plate forces a Hall voltage proportional to this field. The Hall voltage is compared with the actual threshold level in the comparator. If the magnetic field exceeds the threshold levels, the output stage is switched to the appropriate state. The built-in hysteresis eliminates oscillation and provides switching behavior of output without bouncing.
Features
- 2.7V to 30V operation voltage
- Overvoltage protection capability up to 40 V
- High accuracy unipolar switch
- Built-in dynamic offset cancellation
- Open drain output
- Low thermal drift of magnetic sensing
- Qualified according to AEC-Q100 test standard
Applications
- Automotive brake pedal position detection
- Proximity detection
- Speed measurement
- Weak magnetic field applications
- Solid state switches
Operating Temperature: | -40°C~ +150°C |
Release Point: | 10.0 mT |
Hysteresis: | 2.0 mT |
Operation Point: | 8 mT |

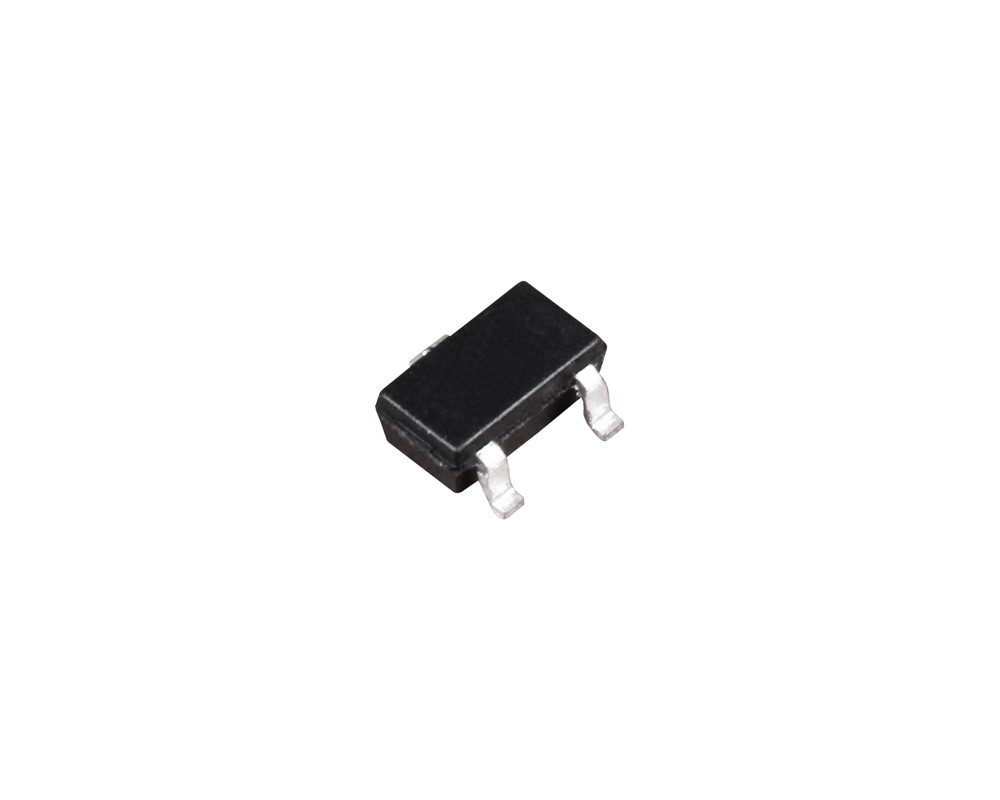

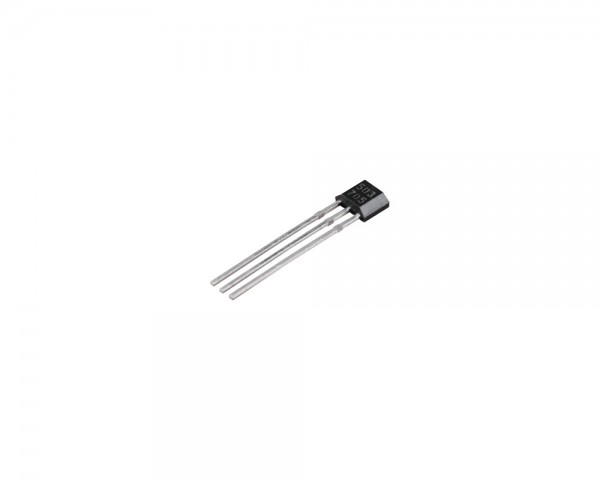

Package/Size: | TO92S/4.1x3.18x1.58mm, SOT23-3L/ 2.92 x 1.60 x 1.15 mm |
Power Supply: | 2.7V ~ 30V DC |
Max. Supply current/voltage: | 25mA/30V |
