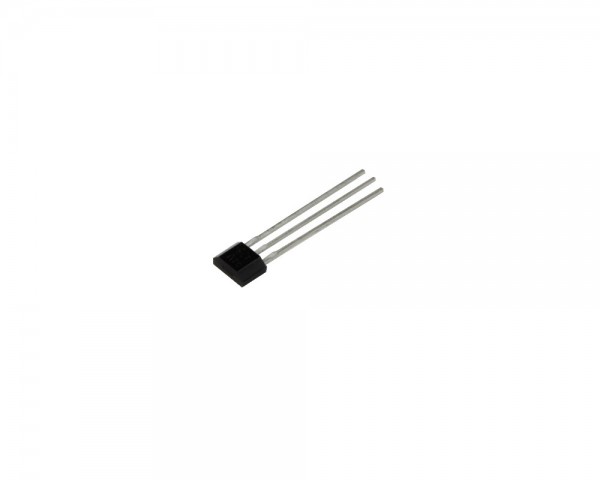

Unipolar Hall Effect Switch Ics CYD9636, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+150°C

Unipolar Hall Effect Switch Ics CYD9636, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+150°C
Quantity Unit price
until 9 € 2.53 *
from 10 € 2.10 *
from 20 € 1.75 *
from 50 € 1.46 *
from 100 € 1.22 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Package:

The CYD9636 is a high sensitive unipolar Hall Effect switch IC. The built-in dynamic offset... more
Unipolar Hall Effect Switch Ics CYD9636, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+150°C

The CYD9636 is a high sensitive unipolar Hall Effect switch IC. The built-in dynamic offset cancellation and temperature compensation of pre-amplifier stage achieves accuracy magnetic sensing. The supply voltage range is from 3.8V to 24VDC and the maximum output current is 50mA. This Hall Effect switch IC integrates a Hall plate, pre-amplifier with dynamic offset cancellation, hysteresis comparator and protection circuit in single chip.

Applications

  • Automotive brake pedal position detection
  • Proximity detection
  • Speed measurement
  • Weak magnetic field applications
  •  Solid state switches etc.

 Features

  • 3.8V to 24V operation voltage
  • High accuracy unipolar switch
  • Built-in dynamic offset cancellation
  • Open drain output
  • Low thermal drift of magnetic sensing
Operating Temperature: -40°C~ +150°C
Package/Size: SOT23, SOT89, TO92
Max. Supply current/voltage: 50 mA
Operation Point: 3.8 mT ~ 7.2 mT
Release Point: 2.0 mT ~ 5.0 mT
Hysteresis: 1.5 mT ~ 2.7 mT
Power Supply: 3.8V ~ 24V DC
