Rare earth permanent magnet NdFeB is a new kind of magnetic material developed in the 1980's with excellent magnetic characteristics (high energy product and high coercive force etc.) and relatively low cost. It is getting to replace the traditional magnets of hard ferrite, AlNiCo and SmCo in many fields such as electro-acoustic devices, electric motors, sensors/transducers, instruments and meters, auto industry, petro-chemical industry and magnetic health-care products etc.

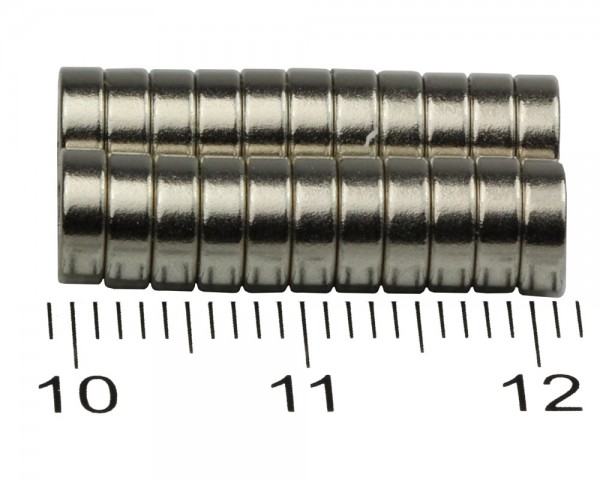

|Dimensions:||Ø 6, ø 3 × 2|
|Curie Temperature (°C):||310-370|
|Maximum Operating Temperature (°C):||80-240|
|Resistivity (µ ohm.cm):||160|
|Density (g/cm3 ):||7.40|
|Relative Recoil Permeability (µrec) :||1.05|
|Saturation Field Strength, kOe (kA/m) :||30-40 (2400-3200)|
|Temperature Coefficient of Br (%/°C):||-0.12 ~ -0.10|
|Temperature Coefficient of iHc (%/°C) :||-0.6|
