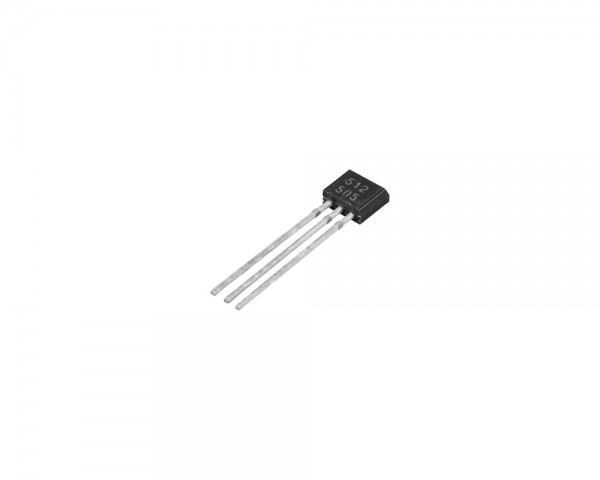

Bipolar Hall Effect Latching Switch Ics CYD8945, Power Supply: 3.8V -60V, supply current: 10mA

Bipolar Hall Effect Latching Switch Ics CYD8945, Power Supply: 3.8V -60V, supply current: 10mA
Quantity Unit price
until 9 € 1.12 *
from 10 € 0.94 *
from 20 € 0.79 *
from 50 € 0.65 *
from 100 € 0.55 *
from 200 € 0.45 *
from 500 € 0.38 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 6 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
The CYD8945 Hall-Effect switch, produced with ultra-high voltage bipolar technology, has been... more
Close menu
Bipolar Hall Effect Latching Switch Ics CYD8945, Power Supply: 3.8V -60V, supply current: 10mA

The CYD8945 Hall-Effect switch, produced with ultra-high voltage bipolar technology, has been designed specifically for automotive and industrial applications etc. New considerations are given not only to protect the IC from the high voltage transients, but also achieving a high degree of noise immunity. Each device includes a voltage regulator for operation with supply voltage of 3.8 to 60V volts, quadratic Hall-Voltage generator, temperature compensation circuity, small-signal amplifier, Schmitt trigger, and an output driver to sink up to 60mA. Internal integrated output filter can improve the EMC capability.

Applications

  • High Sensitive Non-contact Switch
  • DC Brushless Motor
  • DC Brushless Fan
  • Auto-motive transmission position

Features

  • High transient voltage protection
  • Integrated output filter
  • 60mA sinking capability
  • High ESD rating
  • RoHs compliant
Technical Properties
more
Close menu
Max. Supply current/voltage: 10 mA
Operating Temperature: -50°C ~ +150°C
Power Supply: 3.8V ~ 60V DC
Package/Size: UA/4,1x1,52x2,45mm
Hysteresis: 20.0 mT
Operation Point: 2.5 mT ~ 18.5 mT
Release Point: -18.5 mT ~ -2.5 mT
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
