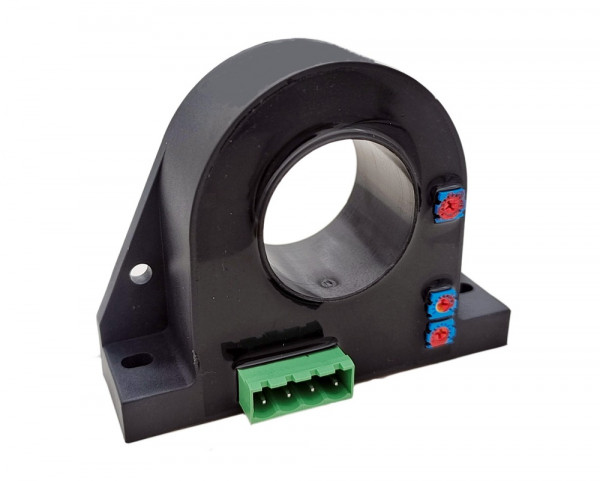

Open Loop AC/DC Hall Effect Current Sensor CYHCS-ST

Open Loop AC/DC Hall Effect Current Sensor CYHCS-ST
Quantity Unit price
until 4 € 70.04 *
from 5 € 63.68 *
from 10 € 57.89 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Power Supply:

Output Signal:

Connector:

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall Effect current sensor is based on open loop principle and designed with a solid core... more
Close menu
Open Loop AC/DC Hall Effect Current Sensor CYHCS-ST

This Hall Effect current sensor is based on open loop principle and designed with a solid core and a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC and AC current, pulsed currents etc. The output of the transducer reflects the true RMS value of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Light in weight
  • Less power consumption
  • Measurement of the true effective value (RMS)
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Numerical controlled machine tools
  • Electrolyzing and electroplating equipment
  • Electric powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring
Technical Properties
more
Close menu
Nominal Input Current: 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-600A, 0-1000A
Sensor Type: Open-Loop
Power Supply: +20 ~ +32 V DC, +12 V DC, +15V DC
Output Signal: 0-5V DC, 0-10 V DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 32
Direction: bidirectional
Accuracy: 1%
Linearity: 1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC -6kHz
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
