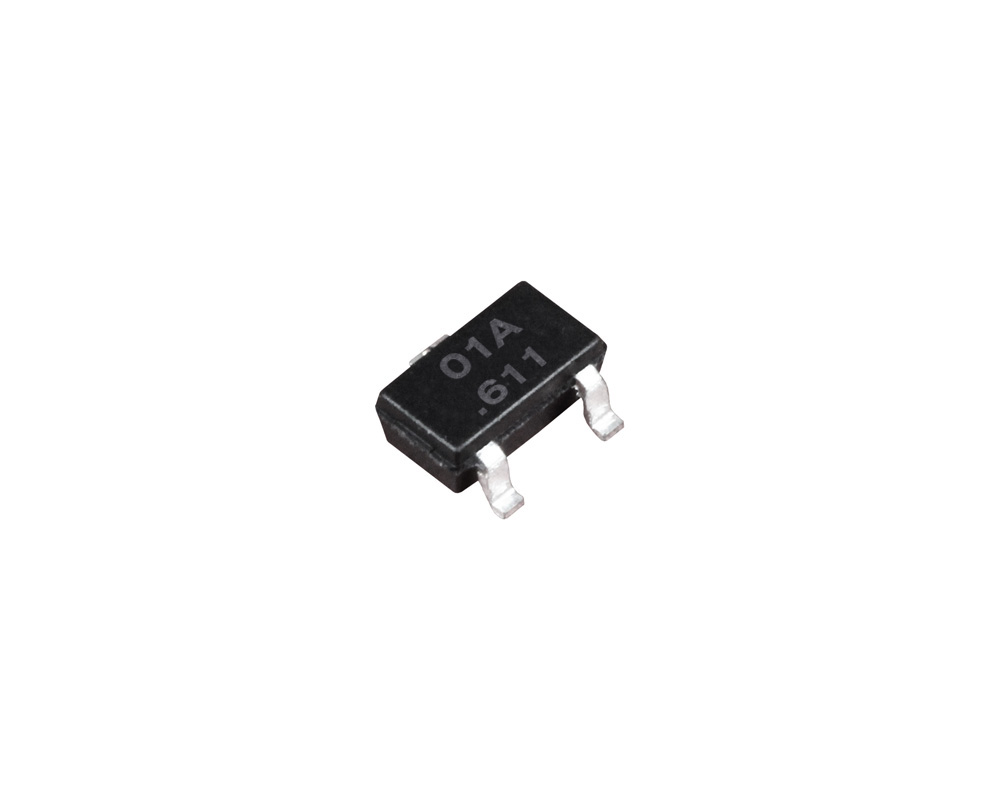

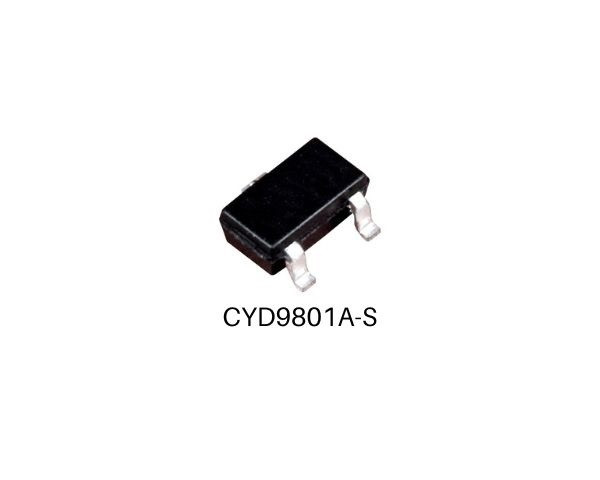

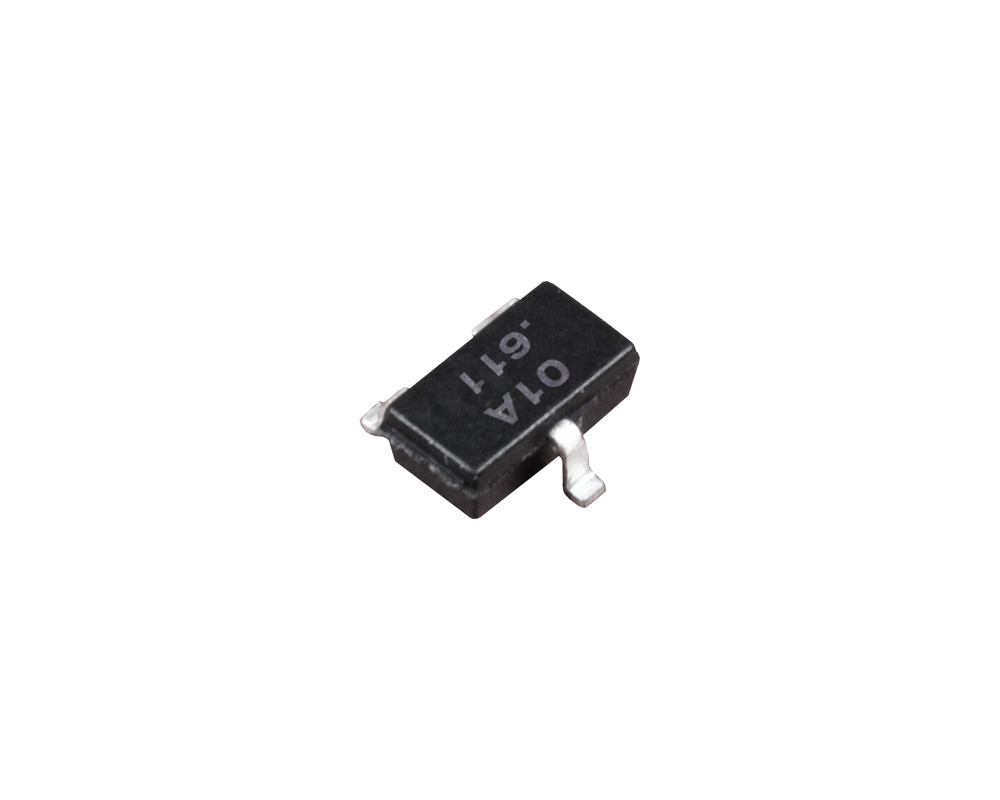

Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA

Preview: Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA Preview: Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA
Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA
Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA

Quantity Unit price
until 9 € 0.73 *
from 10 € 0.61 *
from 20 € 0.51 *
from 50 € 0.43 *
from 100 € 0.36 *
from 200 € 0.30 *
from 500 € 0.25 *
from 1000 € 0.20 *
from 3000 € 0.19 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
Characteristics 2.5V to 18V operation voltage  Built-in dynamic offset... more
Close menu
Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA

Characteristics

  • 2.5V to 18V operation voltage
  • Built-in dynamic offset cancellation
  • Small size
  • High balance and low thermal drift of magnetic sensing

Applications

  • DC brushless motors
  • VCD/DVD loader, CD/DVD-Rom
  • Cover detector
  • Speed Measurement
  • Home applications
  • Home safety etc.
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +125°C
Max. Supply current/voltage: 25 mA
Operation Point: 1.0 mT ~ 3.5 mT
Release Point: -3.5mT ~ -1.0mT
Hysteresis: 2.0 mT ~ 6.0 mT
Power Supply: 2.5V ~ 18V DC
Package/Size: SOT23/2.9x1.8x1.1mm
Data Sheets
more
Close menu
Data sheets to download:
