Bipolar Hall Effect Latching Switch Ics CYD9611,Power Supply: 3.8V -24V,supply current: 50mA, Operating Temperature: -40 ~+125°C

Quantity Unit price
Until 9
€1.67
From 10
€1.39
From 20
€1.17
From 50
€0.96
From 100
€0.81
From 200
€0.67
From 500
€0.56

Shipping ready, delivery time 1-3 workdays
for quantities up to 455 pieces,
delivery time 3-4 weeks for more

Payment
Serial-Nr: CYD9611

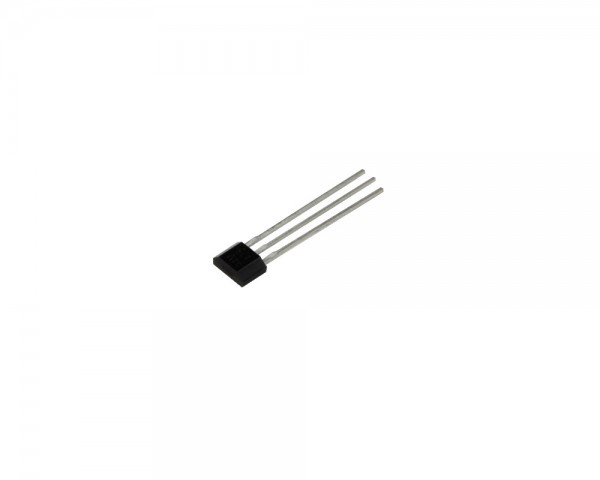

Article-Nr: CYD9611-UA-K

Product information "Bipolar Hall Effect Latching Switch Ics CYD9611,Power Supply: 3.8V -24V,supply current: 50mA, Operating Temperature: -40 ~+125°C"

Features

  • 3.8V to 24V operation voltage
  • High sensitivity
  • Built-in dynamic offset cancellation
  • Small size
  • High balance and low thermal drift of magnetic sensing

Applications

  • DC brushless motors
  • CAM shaft sensors
  • Magnetic Encoders
  • Rotating Speed Measurement
  • Home applications
  • Home safety etc.
Hysteresis: 4.5 mT ~ 7.0 mT
Max. Supply current/voltage: 50 mA
Operating Temperature: -40°C ~ +125°C
Operation Point: 1.0 mT ~ 4.5 mT

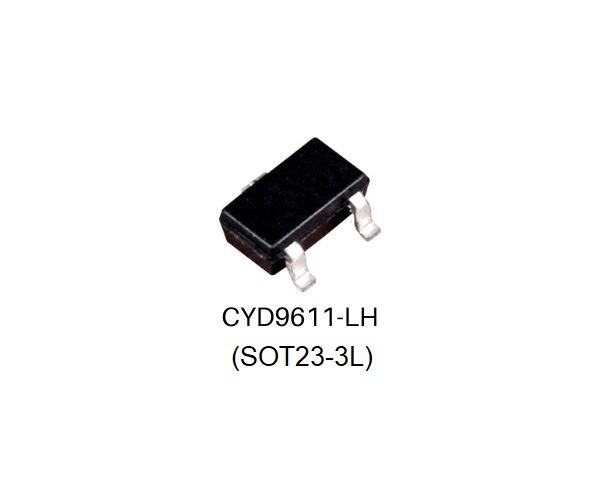

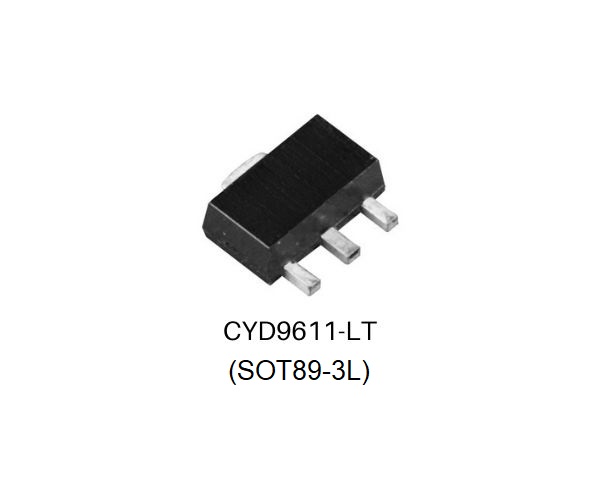

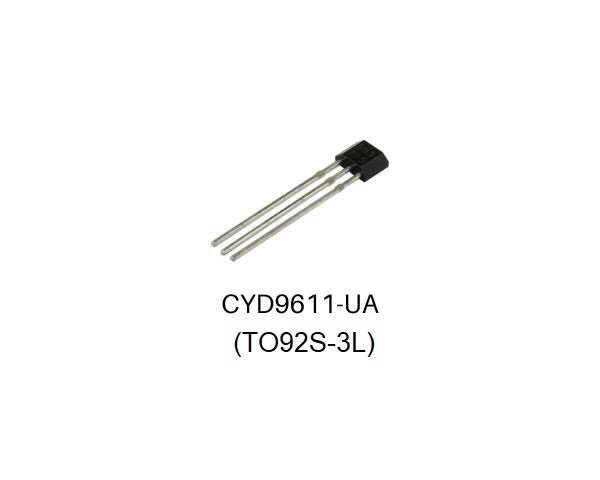

Package/Size: SOT23, SOT89, TO92
Power Supply: 3.8V ~ 24V DC
Release Point: -4.5mT ~ -1.0mT

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
