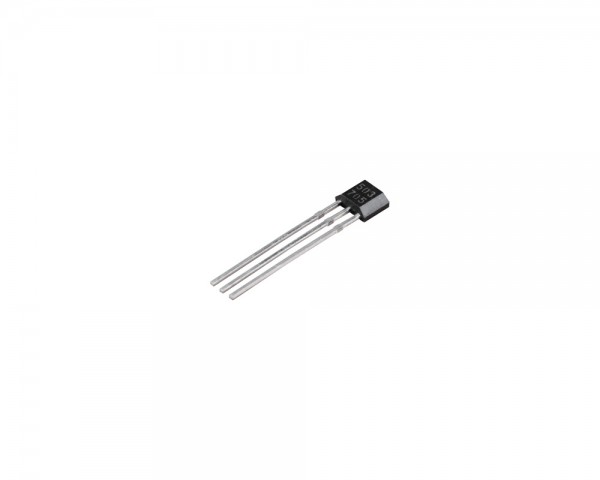

Bipolar Hall Effect Switch Ics CYD3172X, Power Supply: 4.5V -24V, Power Supply current: 12mA

Bipolar Hall Effect Switch Ics CYD3172X, Power Supply: 4.5V -24V, Power Supply current: 12mA
Quantity Unit price
until 9 € 1.54 *
from 10 € 1.27 *
from 20 € 1.07 *
from 50 € 0.89 *
from 100 € 0.74 *
from 200 € 0.62 *
from 500 € 0.51 *
from 1000 € 0.40 *
from 3000 € 0.35 *
from 5000 € 0.31 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
CYD3172X Hall effect latch IC is composed of a reverse protector, voltage regulator, Hall... more
Close menu
Bipolar Hall Effect Switch Ics CYD3172X, Power Supply: 4.5V -24V, Power Supply current: 12mA

CYD3172X Hall effect latch IC is composed of a reverse protector, voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output on a single silicon chip. ICs can convert the changeable magnetic field signal into digital voltage output.

Characteristics

  • High Sensitivity
  • Resistant to Physical Stress
  • Wide Supply Voltage Range
  • Interfacing with All Kinds of Logic Circuits Directly

Application

  • High Sensitive Non-contact Switch
  • DC Brushless Motor
  • DC Brushless Fan
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +85°C
Power Supply: 4.5V ~ 24V DC
Package/Size: TO92/4.06x3.1x1.5mm
Operation Point: 1.0 mT ~ 7.0 mT
Release Point: -7.0mT ~ -1.0mT
Hysteresis: 4.0 mT ~ 8.0 mT
Max. Supply current/voltage: 12 mA
Data Sheets
more
Close menu
Data sheets to download:
