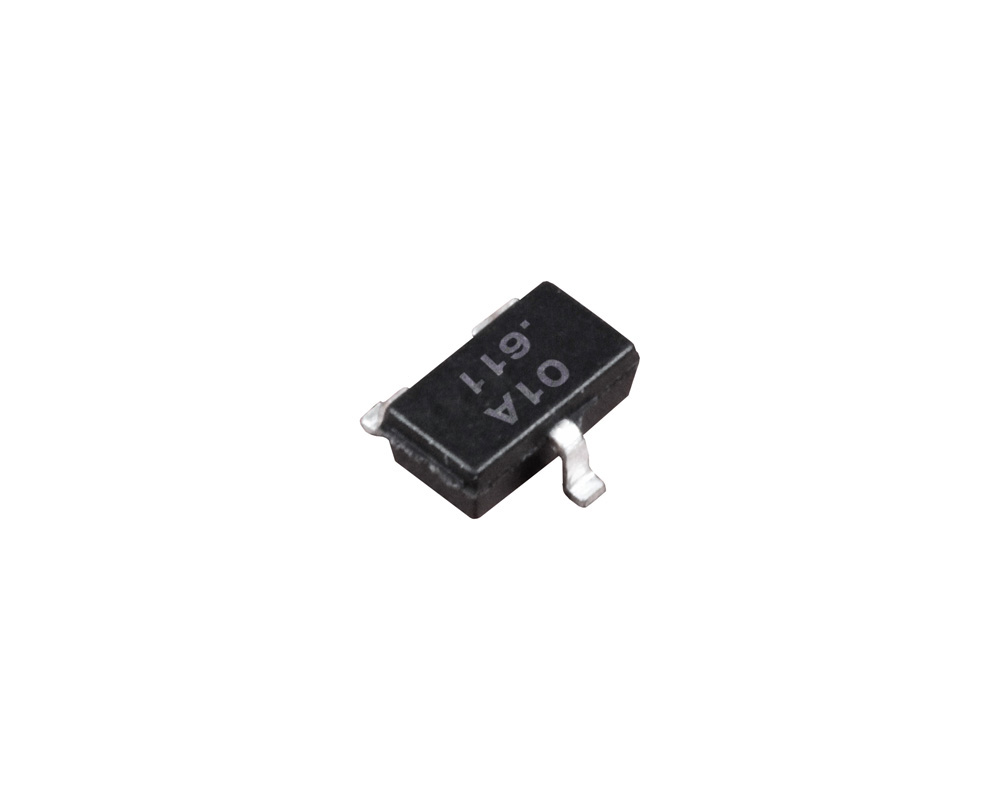

Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA

Quantity Unit price
Until 9
€0.83
From 10
€0.70
From 20
€0.58
From 50
€0.49
From 100
€0.40
From 200
€0.33
From 500
€0.29

Shipping ready, delivery time 1-3 workdays
for quantities up to 2546 pieces,
delivery time 3-4 weeks for more

Payment
Serial-Nr: CYD9801A
Article-Nr: CYD9801A

Product information "Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA"

Characteristics

  • 2.5V to 18V operation voltage
  • Built-in dynamic offset cancellation
  • Small size
  • High balance and low thermal drift of magnetic sensing

Applications

  • DC brushless motors
  • VCD/DVD loader, CD/DVD-Rom
  • Cover detector
  • Speed Measurement
  • Home applications
  • Home safety etc.
Hysteresis: 2.0 mT ~ 6.0 mT
Max. Supply current/voltage: 25 mA
Operating Temperature: -40°C ~ +125°C
Operation Point: 1.0 mT ~ 3.5 mT
Package/Size: SOT23/2.9x1.8x1.1mm
Power Supply: 2.5V ~ 18V DC
Release Point: -3.5mT ~ -1.0mT

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
