High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC

Preview: High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC Preview: High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC Preview: High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC Preview: High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC Preview: High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC
High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC
High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC
High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC
High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC
High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC

Quantity Unit price
until 9 € 4.86 *
from 10 € 4.05 *
from 20 € 3.68 *
from 50 € 3.34 *
from 100 € 3.05 *
from 200 € 2.76 *
from 500 € 2.51 *
from 1000 € 2.28 *
from 3000 € 2.15 *
from 5000 € 2.09 *
from 10000 € 2.03 *
from 50000 € 1.96 *
from 100000 € 1.90 *
from 600000 € 1.84 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
CYGTS9633 is a differential Hall Effect sensor IC with two independent channels providing... more
Close menu
High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power: 3.8~24VDC

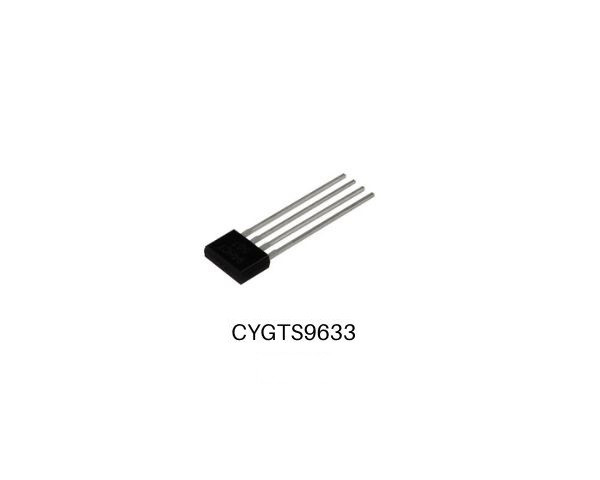

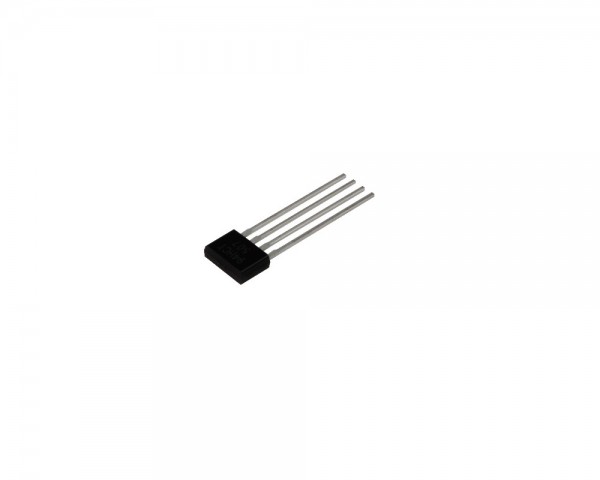

CYGTS9633 is a differential Hall Effect sensor IC with two independent channels providing quadrature outputs. The device provides a high sensitivity and a superior stability over temperature and symmetrical thresholds in order to achieve a stable duty cycle. The integrated circuit is response to changing differential magnetic fields created by rotating ring magnets and by ferrous targets when coupled with a magnet. By use of the A and B quadrature outputs, the device is particularly suitable for speed and direction of magnetic ring or ferromagnetic toothed wheels. The device is packaged in a 4-pin plastic SIP. It is lead (Pb) free, with 100% matte tin plated lead frame.

Features

  • Two independent digital quadrature A/B outputs
  • Accurate true zero-crossing switch-point
  • South and North pole pre-induction possible
  • Large air gap
  • 3.8V to 24V supply operating range
  • Low power consumption 6.5mA (typ.)
  • Wide operating temperature range -40°C ~150°C
  • Protection against over-voltage in all PIN
  • Reverse-current protection in power supply VDD PIN
  • Output protection against electrical disturbances

Applications

Automotive and Heavy Duty Vehicles Industrial:

  • AreasCamshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers
  • Anti-skid/traction control

Industrial Areas:

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed low cost proximity
  • Tachometers, counters.
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Power Supply: 3.8V ~ 24V DC
Bias Magnetic Field: -500~500mT
Package/Size: SIP4/5.13x3.60x1.60mm
Rise/Fall time: 0.4µs / 0.35µs
Sensing gap/distance: 0.2mm ~ 2.0mm
Output Signal: Dual Quadrature Outputs
Data Sheets
more
Close menu
Data sheets to download:
