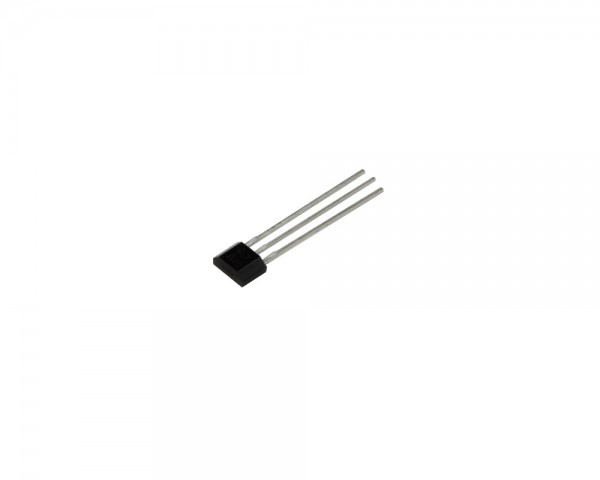

Hall Effect Gear Tooth Sensor ICs CYGTS9801, Output: Single NPN Voltage, Power Supply: 4-30VDC

The CYGTS9801 is a sophisticated Hall Effect Gear Tooth IC featuring an on-chip 12-bit A/D Converter and logic that acts as a digital sample and hold circuit. A separate 6-bit D/A converter provides a fixed hysteresis. The sensor does not have a chopper delay. It uses a single Hall plate which is immune to rotary alignment problems. The bias magnet can be from 1000GS to 4000Gs. As the signal is sampled, the logic recognizes an increasing or decreasing flux density. The output will turn on BOP after the magnetic flux has reached its peak and decreased by an amount equal to the hysteresis. Similarly the output will turn off (BRP) after the flux has reached its minimum value and increased by an amount equal to the hysteresis.

Characteristics

High sensitivity
Digital output signal
Zero speed detection
Short circuit protection
Insensitive to orientation
Wide voltage working range
Self-adjusting magnetic range
On-chip 12 bit A/D converter
High speed operation
No chopper delay applications
RoHS compliant

Applications

Automotive and Heavy Duty Vehicles:

Camshaft and crankshaft speed and position
Transmission speed
Tachometers
Anti-skid/traction control

Industrial Areas:

Sprocket speed
Chain link conveyor speed/distance
Stop motion detector
High speed low cost proximity
Tachometers, counters

Close menu

Operating Temperature:	-40°C~ +150°C
Power Supply:	4.0V ~ 30V DC
Output Signal:	Single NPN Voltage
Rise/Fall time:	0.4µs/0.4µs
Package/Size:	SIP3/4.0x3.0x1.5mm
Sensing gap/distance:	1.0mm ~ 3.0mm
Bias Magnetic Field:	100~400mT
