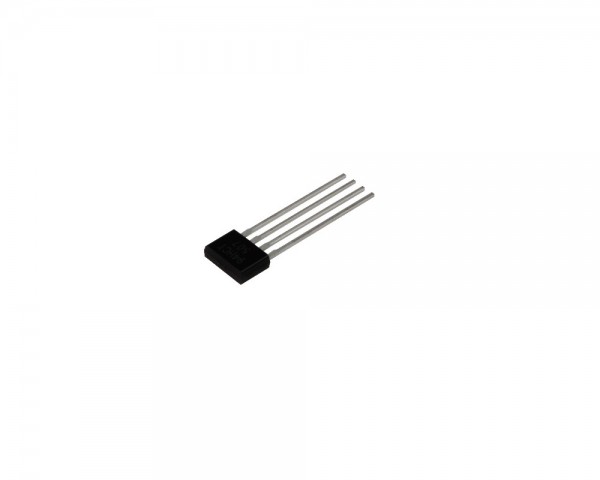

High Sensitivity Differential Speed Sensor IC CYGTS9625, Output Signal: Single NPN Voltage, Power: 3.8-24V DC

The differential Hall Effect Gear Tooth sensor CYGTS9625 provides a high sensitivity and a superior stability over temperature and symmetrical thresholds in order to achieve a stable duty cycle. CYGTS9625 is particularly suitable for rotational speed detection and timing applications of ferromagnetic toothed wheels such as anti-lock braking systems, transmissions, crankshafts, etc. The integrated circuit, which is based on Hall Effect principle, is response to changing differential magnetic fields created by rotating ring magnets and by ferrous targets when coupled with a magnet and provides a digital signal output with frequency proportional to the rotational speed. The device is packaged in a 4-pin plastic SIP. It is lead (Pb) free, with 100% matte tin plated lead frame.

Features

  • Integrated filter capacitor
  • South and North pole pre-induction possible
  • Large air gap
  • 3.8V to 24V supply operating range
  • Wide operating temperature range -40°C ~150°C
  • Output compatible with both TTL and CMOS logic families
  • Protection against over-voltage in all PIN
  • Reverse-current protection in power supply VDD PIN
  • Output protection against electrical disturbances

Applications

Automotive and Heavy Duty Vehicles

  • Camshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers
  • Anti-skid/traction control

Industrial Areas

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed low cost proximity
  • Tachometers, counters
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Output Signal: Single NPN Voltage
Power Supply: 3.8V ~ 24V DC
Rise/Fall time: 0.2µs / 0.2µs
Bias Magnetic Field: -500~500mT
Package/Size: SIP4/5.13x3.60x1.60mm
Sensing gap/distance: 0.2mm ~ 2.0mm
Data Sheets
more
Close menu
Data sheets to download:
