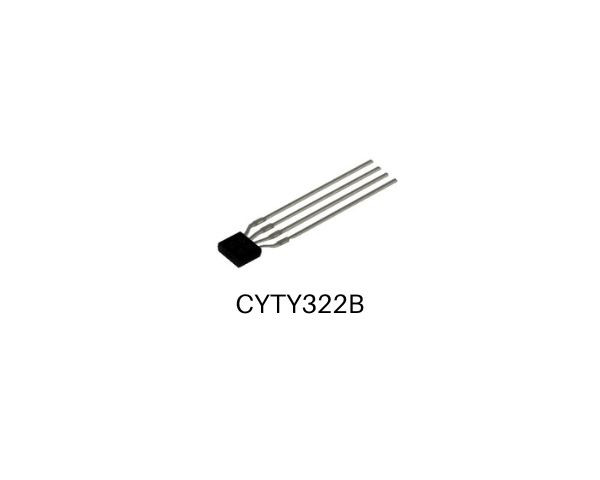

InSb Hall Effect Elements CYTY322B, Max. Sensitivity: 9.12 - 14.8 (mV/mT)

InSb Hall Effect Elements CYTY322B, Max. Sensitivity: 9.12 - 14.8 (mV/mT)
Quantity Unit price
until 9 € 3.80 *
from 10 € 3.17 *
from 20 € 2.64 *
from 50 € 2.20 *
from 100 € 1.83 *
from 200 € 1.52 *
from 500 € 1.27 *
from 1000 € 1.06 *
from 3000 € 1.00 *
from 5000 € 0.98 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
Hall-effect element CYTY322B is made of compound semiconductor material indium stibnite (InSb),... more
Close menu
InSb Hall Effect Elements CYTY322B, Max. Sensitivity: 9.12 - 14.8 (mV/mT)

Hall-effect element CYTY322B is made of compound semiconductor material indium stibnite (InSb), which utilizes the Hall-effect principle. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Magnetic Sensitivity
  • Low Offset Voltage
  • Miniature Package

Application

  • Magnetic Field Measurement
  • Current Sensor
  • Detection of Speed
  • DC Brushless Motor
  • Position Control
Technical Properties
more
Close menu
Package/Size: SIP/2.7x2.35x0.95mm
Max. Sensitivity: 9.12 ~ 14.8 mV/mT
Input/Output Resistance: 240 ~ 550kΩ/240 ~ 550kΩ
Max. Supply current/voltage: 20 mA
Operating Temperature: -40°C ~ +110°C
Data Sheets
more
Close menu
Data sheets to download:
