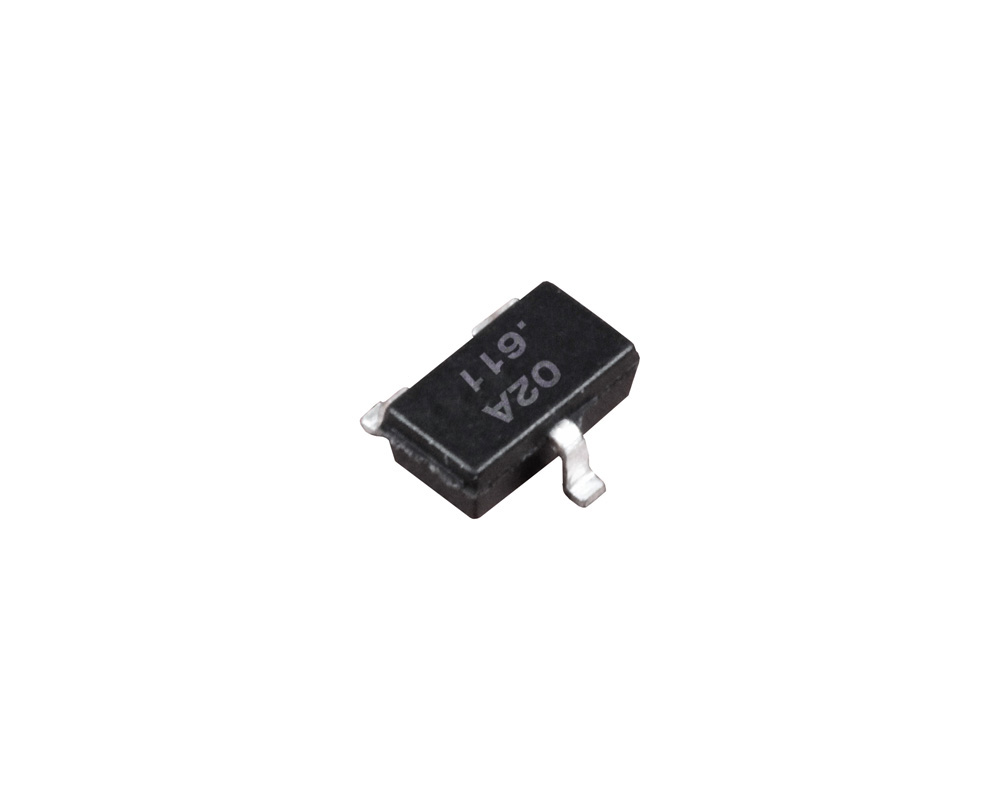

Bipolar Hall Effect Switch Ics CYD9802A, Power Supply: 2.5V -18V, Power Supply current: 25mA
| Quantity | Unit price |
|---|---|
| Until 9 |
€0.92
|
| From 10 |
€0.76
|
| From 20 |
€0.64
|
| From 50 |
€0.54
|
| From 100 |
€0.44
|
| From 200 |
€0.37
|
| From 500 |
€0.31
|
Article not in stock, delivery time 3-4 Weeks
Product information "Bipolar Hall Effect Switch Ics CYD9802A, Power Supply: 2.5V -18V, Power Supply current: 25mA"
The CYD9802A is designed for magnetic actuating using a bipolar magnetic field. The built-in dynamic offset cancellation of pre-amplifier stage achieves optimal symmetrical magnetic sensing. This Hall Effect IC is suitable for DC brushless fan applications. The supply voltage range is from 2.5V to 18V and the maximum output current is 25mA. This Hall Effect switch IC integrates the sensor, pre-amplifier with dynamic offset cancellation and hysteresis comparator in single chip.
Characteristics
- 2.5V to 18V operation voltage
- Built-in dynamic offset cancellation
- Small size
- High balance and low thermal drift of magnetic sensing
- Output with pull-up resistor
Application
- DC brushless motors
- VCD/DVD loader, CD/DVD-Rom
- Cover detector
- Speed Measurement
- Home applications
- Home safety etc.
| Hysteresis: | 2.0 mT ~ 6.0 mT |
|---|---|
| Max. Supply current/voltage: | 25 mA |
| Operating Temperature: | -40°C ~ +125°C |
| Operation Point: | 1.0 mT ~ 3.5 mT |
| Package/Size: | SOT23/2.9x1.8x1.1mm |
| Power Supply: | 2.5V ~ 18V DC |
| Release Point: | -3.5mT ~ -1.0mT |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
