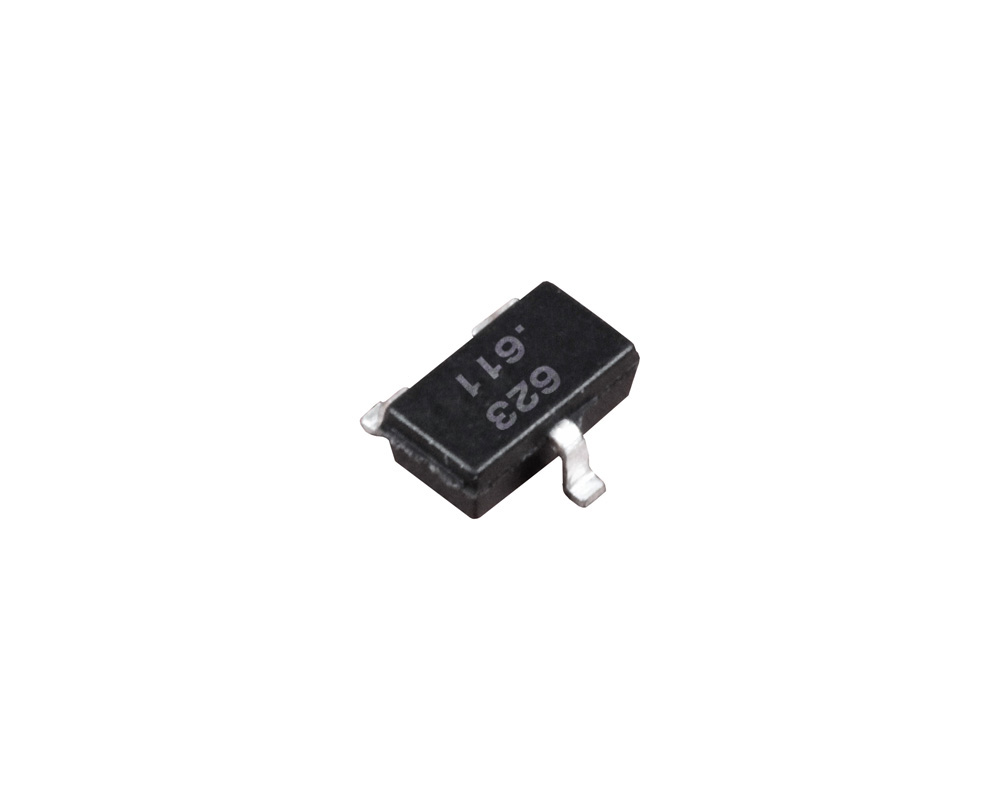

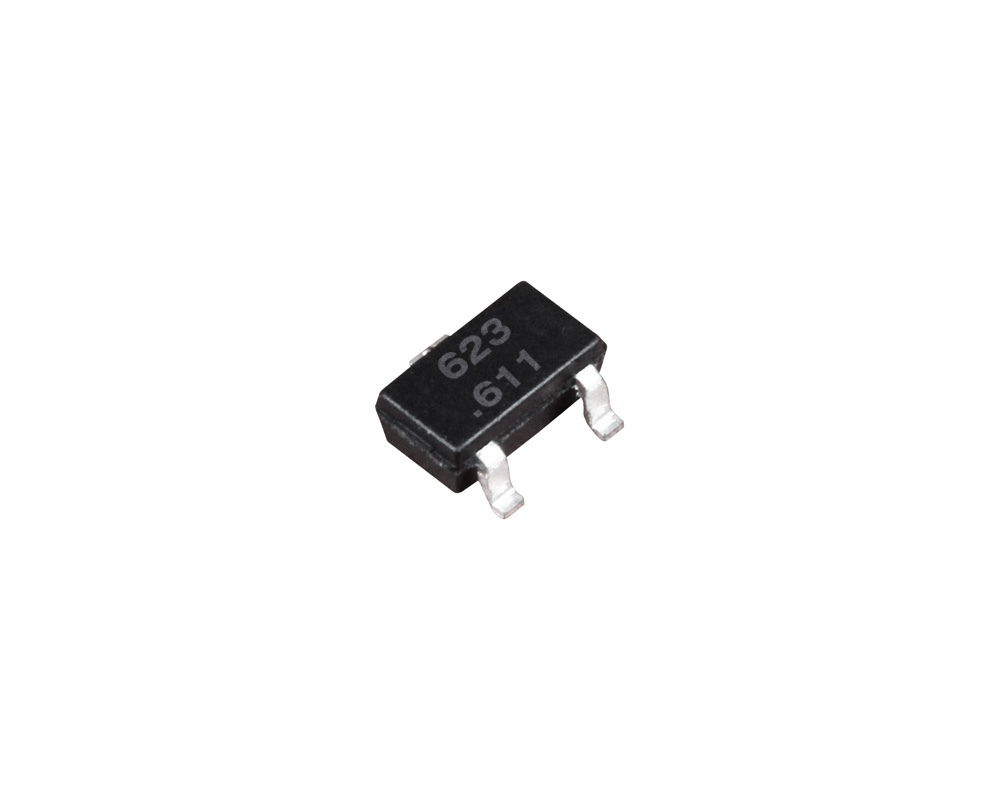

Unipolar Hall Effect Switch Ics CYD3623, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C

Preview: Unipolar Hall Effect Switch Ics CYD3623, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C Preview: Unipolar Hall Effect Switch Ics CYD3623, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD3623, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD3623, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C

Quantity Unit price
until 9 € 1.08 *
from 10 € 0.90 *
from 20 € 0.75 *
from 50 € 0.63 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
Characteristics 2.5V to 18V operation voltage  Built-in dynamic offset... more
Close menu
Unipolar Hall Effect Switch Ics CYD3623, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C

Characteristics

  • 2.5V to 18V operation voltage
  • Built-in dynamic offset cancellation
  • Small size
  • High balance and low thermal drift of magnetic sensing

Application

  •  VCD/DVD loader
  • Cover detector
  • Speed Measurement
  • Home applications
  • Home safety etc
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +125°C
Max. Supply current/voltage: 25 mA
Operation Point: 10.0 mT ~ 11.0 mT
Release Point: 7.0 mT ~ 10.0 mT
Hysteresis: 1.0 mT ~ 3.0 mT
Power Supply: 2.5V ~ 18V DC
Package/Size: SOT23/2.9x1.8x1.1mm
Data Sheets
more
Close menu
Data sheets to download:
