InSb Hall Effect Elements CYSH12AF, Max. Sensitivity: 7.84 - 16.6 (mV/mT)

InSb Hall Effect Elements CYSH12AF, Max. Sensitivity: 7.84 - 16.6 (mV/mT)
Quantity Unit price
until 9 € 0.61 *
from 10 € 0.50 *
from 20 € 0.42 *
from 50 € 0.35 *
from 100 € 0.29 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
Hall-effect element CYSH12AF is made of compound semiconductor material indium stibnite (InSb),... more
Close menu
InSb Hall Effect Elements CYSH12AF, Max. Sensitivity: 7.84 - 16.6 (mV/mT)

Hall-effect element CYSH12AF is made of compound semiconductor material indium stibnite (InSb), which utilizes the Hall-effect principle. It can convert a magnetic flux density signal linearly into voltage output. It is new generation of Hall Effect element CYTY101A.

 Characteristics

  • High Magnetic Sensitivity
  • Low Offset Voltage
  • Miniature Package

Application

  • Magnetic Field Measurement
  • Current Sensor
  • Detection of Speed
  • DC Brushless Motor
  • Position Control
Technical Properties
more
Close menu

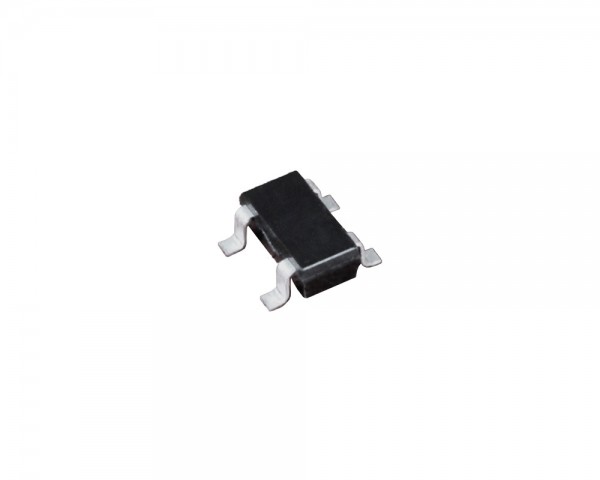

Package/Size: SOT143/2.9x1.5x1.1mm
Max. Sensitivity: 7.84 ~ 16.6 mV/mT
Input/Output Resistance: 240 ~ 550kΩ/240 ~ 550kΩ
Max. Supply current/voltage: 20 mA
Operating Temperature: -40°C ~ +110°C
