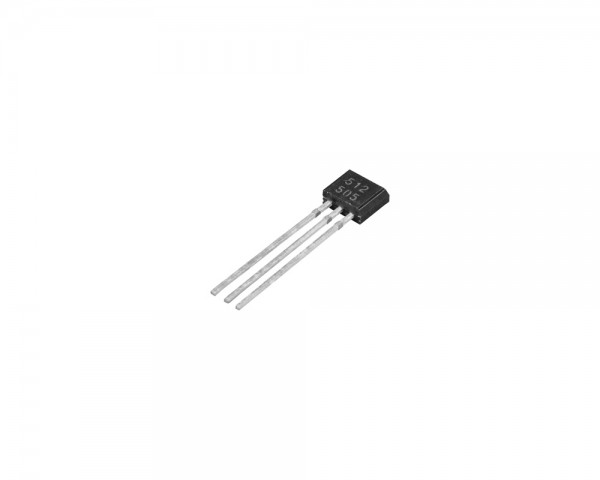

Bipolar Hall Effect Switch Ics CYD512, Power Supply voltage: 4.5V -18V, Power Supply current: 8mA

Bipolar Hall Effect Switch Ics CYD512, Power Supply voltage: 4.5V -18V, Power Supply current: 8mA
Quantity Unit price
until 9 € 2.05 *
from 10 € 1.70 *
from 20 € 1.42 *
from 50 € 1.19 *
from 100 € 0.99 *
from 200 € 0.82 *
from 500 € 0.69 *
from 1000 € 0.54 *
from 3000 € 0.48 *
from 5000 € 0.43 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
CYD512 Hall Effect latch ICs are composed of a reverse protector, voltage regulator, Hall... more
Close menu
Bipolar Hall Effect Switch Ics CYD512, Power Supply voltage: 4.5V -18V, Power Supply current: 8mA

CYD512 Hall Effect latch ICs are composed of a reverse protector, voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output (bipolar latch) on a single silicon chip. ICs can convert the changeable magnetic field signal into digital voltage output.

Characteristics

  •  High Sensitivity
  • Resistant to Physical Stress
  • Wide Supply Voltage Range
  • Interfacing with All Kinds of Logic Circuits Directly

Application

  • High Sensitive Non-contact Switch
  • DC Brushless Motor
  • DC Brushless Fan
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Max. Supply current/voltage: 8 mA
Operation Point: 1.0 mT ~ 6.0 mT
Release Point: -6.0mT ~ -1.0mT
Hysteresis: 2.0 mT ~ 7.0 mT
Power Supply: 4.5V ~ 18V DC
Package/Size: TO92/4.5x4.0x2.0mm
Data Sheets
more
Close menu
Data sheets to download:
