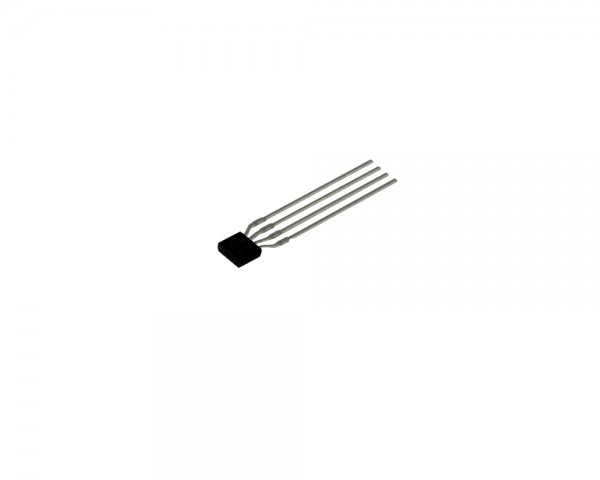

Linear Hall Effect Sensors Elements CYSJ362A, Max. Sensitivity: 3.1-4.1 (mV/mT), Measuring range: 3T

Linear Hall Effect Sensors Elements CYSJ362A, Max. Sensitivity: 3.1-4.1 (mV/mT), Measuring range: 3T
Quantity Unit price
until 9 € 2.71 *
from 10 € 2.26 *
from 20 € 1.88 *
from 50 € 1.57 *
from 100 € 1.31 *
from 200 € 1.11 *
from 500 € 0.90 *
from 1000 € 0.76 *
from 3000 € 0.74 *
from 5000 € 0.73 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
CYSJ362A series Hall-effect element is an ion-implanted magnetic field sensor made of... more
Close menu
Linear Hall Effect Sensors Elements CYSJ362A, Max. Sensitivity: 3.1-4.1 (mV/mT), Measuring range: 3T

CYSJ362A series Hall-effect element is an ion-implanted magnetic field sensor made of monocrystal gallium arsenide (GaAs) semiconductor material group III-V using ion-implanted technology. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Linearity
  • Superior Temperature Stability
  • Miniature Package
  • Replacements of THS119, KSY14 and KSY44 etc.

Application

  • Magnetic Field Measurement
  • DC Brushless Motor
  • Current Sensor
  • Non-contact Switch
  • Position Control
  • Detection of Revolution
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +125°C
Measuring range: 3T
Package/Size: SIP/2.7x2.35x0.95mm
Max. Sensitivity: 3.10 ~ 4.1 mV/mT
Linearity: 2%
Input/Output Resistance: 1000 ~ 1500 kΩ/ 1800 ~ 3000kΩ
Max. Supply current/voltage: 12.0 V
Data Sheets
more
Close menu
Data sheets to download:
