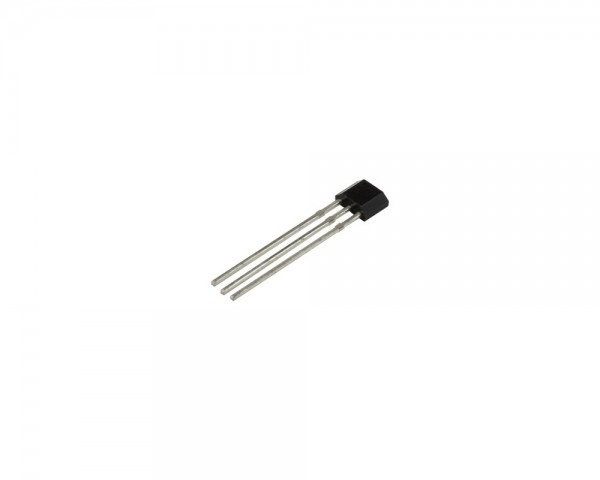

Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT

Preview: Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT Preview: Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT Preview: Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT

Quantity Unit price
until 9 € 1.24 *
from 10 € 1.04 *
from 20 € 0.86 *
from 50 € 0.71 *
from 100 € 0.60 *
from 200 € 0.50 *
from 500 € 0.42 *
from 1000 € 0.36 *
from 3000 € 0.30 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays

Description Technical Properties Data Sheets
Description
CYL49E linear Hall-effect integrated circuit is based on Hall-Effect principle, which includes a... more
Close menu
Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT

CYL49E linear Hall-effect integrated circuit is based on Hall-Effect principle, which includes a voltage regulator, Hall-voltage generator, linear amplifier, and emitter-follower output stage. The output of the ICs changes linearly with the magnetic flux density that should be measured.

Characteristics

  • Small Size
  • High Accuracy
  • High Sensitivity
  • Excellent Reliability
  • Low Power

Application

  • Motion Detector
  • Gear Tooth Sensors
  • Proximity Detector
  • Speed Regulator for Sports Appliance
  • Current Detecting Sensor
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +85°C
Quiescent Output voltage: 2.40 V ~ 2.60 V
Measuring range: 100mT
Package/Size: TO92/4.06x3.1x1.5mm
Max. Sensitivity: 14.0 ~ 18.0 mV/mT
Max. Supply current/voltage: 8 mA/9 V
Data Sheets
more
Close menu
Data sheets to download:
